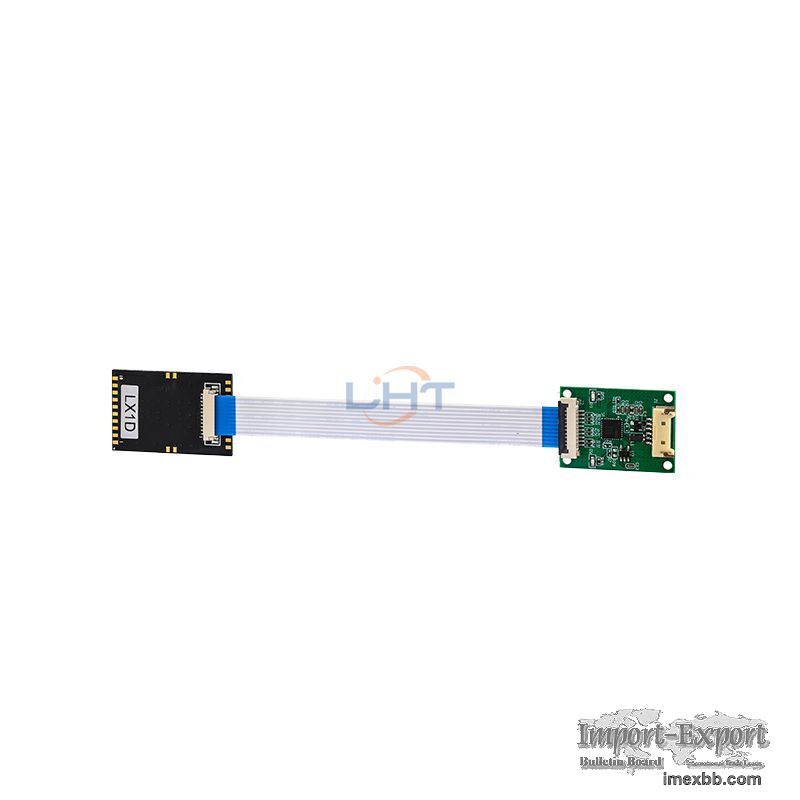

LHT-FP60849 Fingerprint Module

The LHT-FP60849 fingerprint recognition module is a self-developed, high-
performance verification device equipped with a semiconductor fingerprint
sensor that can capture fingerprints in all finger positions. It also features
a dedicated algorithm and comes in a modular form factor. The entire device has
passed security testing and certification, supports secondary development, and
can be embedded into user products.
Camera Modules Parameters:
Appearance Size Dimensions (LengthWidthHeight) 53 × 38×6 (unit: mm)
Power Consumption DC 3.3V ===135mA
Communication Interface UART
Sensor Type Semiconductor (Area/Pressure Type)
Effective Image Area 19.9 mm x 14.35 mm
Fingerprint Image Resolution 256*360
Image Resolution 508 DPI
Basic Function Fingerprint Collection/Authentication
Image Gray Level 8-bit, 256 levels
Dynamic Range of Gray Level ≥220
Image Background Unevenness ≤10%
Algorithm Collection Collection Time <0.25s
Matching Mode 1:1 or 1:N
Relative Speed 0.06s
