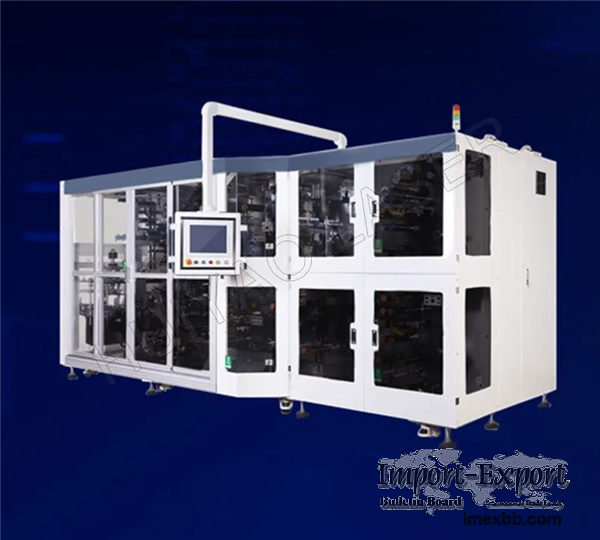

Lithium Cell Pilot Line

Lithium ion pilot line The main equipment consists of high temperature negative
pressure formation equipment, capacity grading pressure bed equipment,
formation and capacity grading charge and discharge power cabinet.
The main equipment consists of lithium ion pilot line are high temperature
negative pressure formation equipment, capacity grading pressure bed equipment,
formation and capacity grading charge and discharge power cabinet, nail
pulling/nail insertion equipment, coding scanning equipment, pre-
charge/formation/capacity grading needle bed equipment, pre-charge/formation/
capacity grading power cabinet equipment, destacking/palletizing & NG selection
equipment, OCV/DCIR test equipment, secondary electrolyte filling, cleaning,
sealing equipment, grading equipment, high temperature & normal temperature
standing shelves, logistics conveying lines, WCS/WMS/MES systems.
Role of Lithium Ion Pilot Line
This equipment is mainly used for lithium ion pilot line automatic winding of
cylindrical cells. Main action process: cathode, anode electrode and separator
feeding method are all coil feeding method, cathode, anode electrode and
separator are actively unwinded, respectively through dust removal, iron
removal and electrostatic removal treatment into the winding part, and
according to its process requirements for winding, automatic change of station
after winding, cut off the separator, attach the termination tape, finished
products automatic unloading, (through hot holes, inserts, code scanning, short
circuit detection) and defective products rejected, good products are sent to
the post-project, to achieve the production of fully automated cylindrical
cells lithium battery Cell Pilot Line is mainly used for automatic cutting and
automatic lamination of electrodes of lithium-ion batteries.
