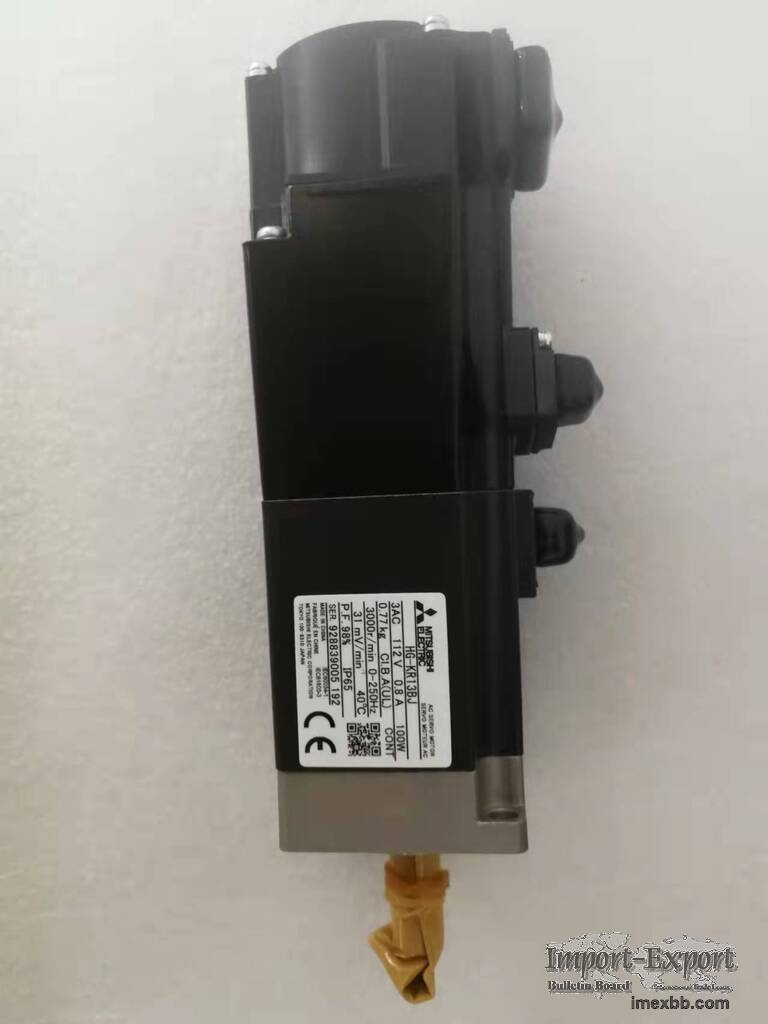

Low Inertia And Small Capacity Motor HG-KR13BJ For Realize Positioning

Machine Model : HG-KR13BJ

Servo motor series: low inertia, small capacity. Rated output: 0.1kw. Rated
speed: 3000r / min.


Electromagnetic braking: attached.Oil seal: attached (Note 1, note 2, note 3).
Power supply: 200V.

Note 1 It can be supported by hg-kr and hg-mr series above 0.1kw and hg-sr
series. Note 2 With reducer, oil seal is not equipped.Note 3 The boundary
dimension standards of hg-kr and hg-mr series servo motors with oil seal are
different. The rated speed is 3000r / min and the large speed is 6000r / min.
The high torque is 350% of the rated torque, realizing high torque in the field
of high rotation. It only supports hg-kr series products. Built in position
encoder with high resolution.Provide standard high-resolution position encoder
(4.194304p/rev (22bit)). Realize more positioning function.
To improve the environmental resistance, hg-kr, hg-mr, hg-rr and hg-ur series
products adopt IP65. Three general purpose AC servo amplifiers melcervo-j2-
super series. Rated output: 0.4KW. Built in positioning function.Voltage: 3-
phase ac200vac or single-phase AC230V. The CPU integration of Mitsubishi hg-
kr13bj greatly improves the responsiveness of products.Due to the application
of CPU, the responsiveness is greatly improved.
The frequency response of the speed loop is increased to more than 550hz. Hg-
kr13bj mr-j2-super series is a good device for high-speed positioning
applications. Easy adjustment.Model adaptive control / real-time automatic
tuning. Type: hf-se servo motor, medium inertia, medium power, rated output
power: 2.0kw.Rated speed: 2000r / min Mitsubishi hg-kr13bj. Electromagnetic
braking: none. Oil seal: none.The servo motor can control the speed and
position accuracy very accurately.
The voltage signal can be converted into torque and speed to drive the control
object. The rotor speed of the servo motor is controlled by the input signal
and can respond quickly in the automatic control system as an actuator.It has
the characteristics of small electromechanical time constant, high linearity,
starting voltage and so on.
The received electrical signal can be converted into angular displacement or
angular speed on the motor shaft and output. Mitsubishi hg-kr13bj is divided
into DC and AC servo motors. Its main characteristics are:,When the signal
voltage is zero, there is no rotation, and the speed decreases uniformly with
the increase of torque. The terminal strip of servo amplifier adopts connector
to reduce the required wiring time. The connector is located in front of the
servo amplifier to facilitate cable connection.
The gain can be adjusted conveniently through the real-time automatic tuning
function. It is widely used for servo drive, machining equipment and machine
tool feeding.For food, packaging equipment and feeding devices. Used in textile
machinery, etc. It can improve the performance of the equipment.It is easy to
operate and reduce the workload. Enhanced system cost performance.positioning
(servo motor encoder resolution: 131072). High responsiveness.Vibration control
function through adaptive vibration.The personal computer and servo setting
software are used to optimize the tuning. Mitsubishi servo driver has two types
of interfaces:Pulse train interface is used for position control and internal
speed control.The analog input interface is used for speed control and torque
control. Mitsubishi Electric general AC servo amplifier melcervo-j3 series.
Rated output: 0.75KW.Interface type: CC link communication type (built-in
positioning function) Mitsubishi servo driver.Power specification: single phase
ac200v.The positioning operation is realized by setting the position and speed
data in the positioning table and receiving the start signal from the main
controller. The setting of position, speed and other data in the positioning
table and the start and stop operation can be completed through CC link
communication.
By using mr-j3-d01 to expand I0 unit, the location table selection and location
operation can be carried out through di / O instruction. When mr-13-d01 is
used, CC ink certificate cannot be carried out.Using the servo amplifier with
built-in positioning function, the position, speed and other data can be set
through CC link communication. (corresponding to CC link version ver.
1.10)Start, stop and monitor can be realized through CC link communication. Hg-
kr13bj serial communication reduces wiring.Through CC link communication, the
distributed co server control system can be constructed. The three hg-kr13bj
parameter unit mr-pru03 (option) makes the teaching setting, operation and
easier. The servo amplifier can be operated by dry speed control.When both
stations are occupied, the speed command can be set directly through the remote
register.
