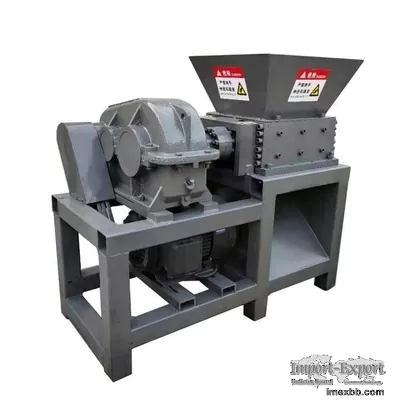

Low Noise Double Shaft Shredder Machine With Big Feeding Hopper / Sharp Edg

Big Feeding Hopper Low Noise Sharp Edge Alloy Blades Foam Plastic Shredding Machine

Product Description:

The equipment can shred large pieces of materials, baskets, tubes, boards, wood,
tires, scrap metal barrels and large rolls of film; the ultra-thick plate
precision-machined composite structure outer frame, large-angle hexagonal columns
and strong rotating shafts, and large-diameter solid feeding hopper, safely input
large raw materials; the unique rotating tool is designed and processed according
to thickness, shape and arrangement sequence..

Product Features:

It has strong shearing force and sharp cutting edge, which can easily break various
materials. In addition, the equipment also adopts a low-speed, low-noise, and less-
dust design, making the working environment more comfortable and healthy.

The equipment's knives are made of special alloy steel, which is strong and durable
and can greatly extend the service life of the equipment. At the same time, the
wearing parts of the equipment have also been specially designed and processed so
that they can be replaced and repaired quickly and easily.

In short, this equipment is a powerful, efficient, safe, environmentally friendly
and healthy crushing equipment that can be widely used in the crushing and
processing of various materials.

Parameters Model OPS-400
Motor 4KW
Gearbox JL3#-12
Input rotation 12rpm
Input torque 2919Nm
Shaft Φ60
Blade Φ180*15,9CrSi
Blade nos 26pcs
Inlet size 600*500*300mm
Outlet width 420mm
Outlet height to floor 200mm
Overall size 1160*600*1450mm
G.W ≈500kg
Capacity: 110-130kg/h
Applications Light metals, plastics, kitchen wastes, wood, paper, etc.
Low Noise Double Shaft Shredder Machine With Big Feeding Hopper / Sharp Edge Alloy
Blades 0

Working principle of double shaft shredder:

The working principle of the double-shaft shredder is mainly to crush and tear
materials through the rotation and shearing action of the two main shafts. When the
material enters the double-shaft shredder, the two main shafts rotate at different
speeds, forming rotational force and shearing force, causing the material to be
crushed by extrusion, shearing and friction between the two main shafts. into small
pieces.

Specifically, the main shaft of a double-shaft shredder is usually made of high-
strength materials, such as high manganese steel, alloy steel, etc., which have
high hardness and wear resistance. When the main shaft rotates, the friction
between the material and the main shaft causes the material to be torn, while the
gap between the main shaft causes the material to be squeezed. At the same time,
the speed difference between the two spindles also causes the material to be
sheared.

In addition, the double-shaft shredder is also equipped with auxiliary devices such
as blades and screens to further crush and screen materials. The blade can increase
the friction between the material and the main shaft and improve the crushing
effect; the screen can control the discharge granularity of the material to meet
different needs.

Low Noise Double Shaft Shredder Machine With Big Feeding Hopper / Sharp Edge Alloy
Blades 1

Low Noise Double Shaft Shredder Machine With Big Feeding Hopper / Sharp Edge Alloy
Blades 2

Low Noise Double Shaft Shredder Machine With Big Feeding Hopper / Sharp Edge Alloy
Blades 3

Low Noise Double Shaft Shredder Machine With Big Feeding Hopper / Sharp Edge Alloy
Blades 4

Low Noise Double Shaft Shredder Machine With Big Feeding Hopper / Sharp Edge Alloy
Blades 5

FAQ:

Q:Could I have prices of your products?

A:Sure. Please feel free to send us an email here. You will get our reply in 24
hours
Q:How about the quality of machines?
A:Our machines adopt advanced technology. Moreover, we carry out strict supervision
during productionand make sure every finished product with high quality.
Q: Do you inspect the finished products?
A:Yes, each step of production and finished products will be came out inspection by
QC department before shipping.
