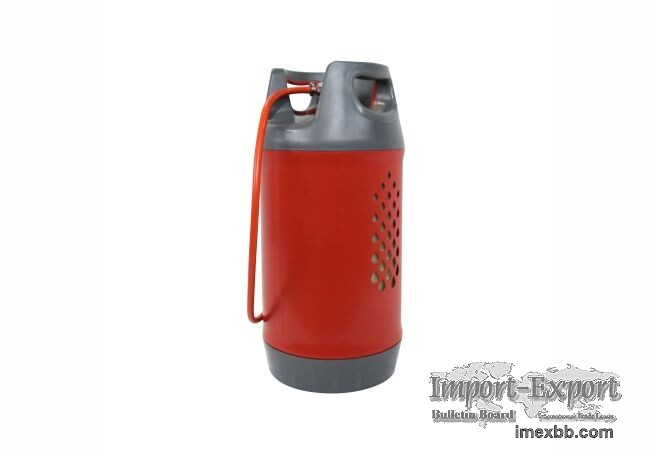

LPG Composite Cylinder

The Composite LPG cylinders are produced by high anti-corrosion material, which
will not loose due to rust. The appearance color will always maintain fresh
The Anhui Green Energy of composite LPG cylinders is designed as the modern
alternative to the steel cylinders. Suitable for a variety of applications,
both industrial and for home-users and leisure activities, this superior
cylinder is made from advanced polymeric and composite materials combining
uncompromising safety, quality, design and innovation into the future standard
for gas containment.
LPG Composite Cylinder Introduction
DESCRIPTION PARAMETERS
Filling Weight(LPG/KG) 12.5KG
Cylinder Empty Tare Weight(KG) 7.5KG
Water Capacity(L) 30.5L
Height(mm) 650mm
Diameter(mm) 307mm
Working Pressure(bar) 20bar
Test Pressure(bar) 30bar
Hydraulic Burst Pressure(bar) 150bar
