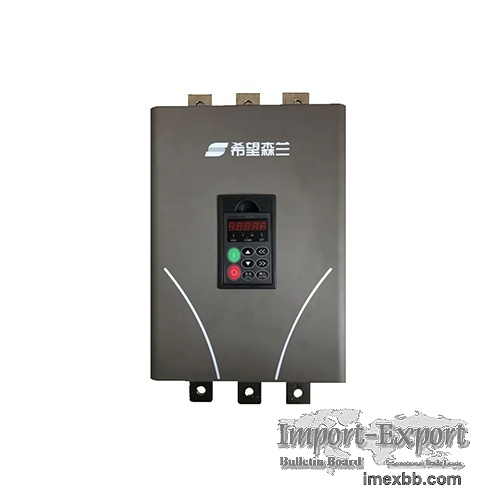

LSD100 Series Low Voltage Soft Starter

32-bit DSP for control system
Built-in RS485 Modbus protocol
Automatic current limiting function
High reliability with high level components
Intelligent operation interface
Modular structure design with compact size
LSD100 Series Low Voltage Soft Starter Specifications
  Items Descriptions
Input Rated voltage, frequency 3 Phase: 380V, 50Hz/60Hz
Allowable range Voltage fluctuating range: -15%~10%; instantaneous
-20%; frequency:2%
Control power Single phase: 220V, allowable range: 160-250V
Number of staring <=8 time/hour
Initial voltage 25~80% of Ue
Basic Run command Operation panel, control terminal setting,
communication setting
Analog output 2 channels AO: 0/4~20mA
Digital input 3 digital inputs
Digital output 3 relay output
Communication Built-in RS485 interface with Modbus RTU
Optional LCD display
IP Class IP00
Cooling Natural cooling
Protections Overcurrent, undervoltage, input/output phase loss,
overheating, motor overload
