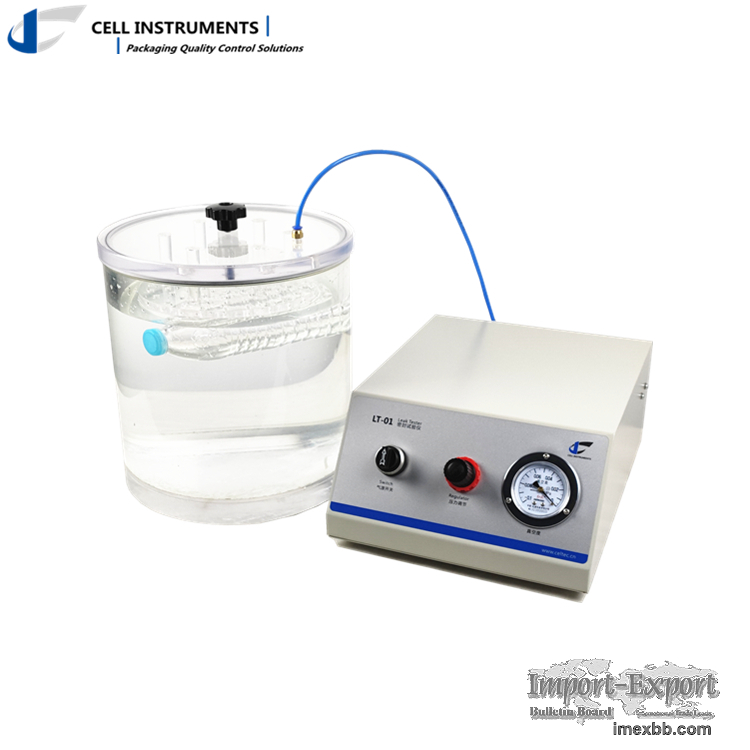

LT-01 Leak Tester

USES AND METHOD
LT-01 is an economical manually operated vacuum leak tester. It’s also
designed by ASTM D3078 standard test method for determination of leaks in
flexible packaging by bubble emission.
Equipped with the control unit and a standard test chamber with usable space of
270 φ*210mm H, it is suitable for seal integrity tests for various package
forms used in food, pharmaceutical, medical, stationery, cosmetics, packaging
sectors, etc.
A test sample is placed into this chamber filled with water and the air is
drawn out to a controlled level of vacuum. Thus a pressure difference is
created inside and outside the sample. The gross leaks can be checked and
tracked by eye, when the sample is expanded.

Features
The leak test system requires no electricity
High leak test efficiency
Extra-thick PMMA
Different chamber sizes available
No calibration needed
No vacuum pump required
Easy installation, start-up and operation
Low maintenance

TECHNICAL DATE
Vacuum: 0~-90KPa
Vacuum chamber size: Φ270 mm x 210 mm (H) ( Customization available)
Gas source: 0.7 MPa Compressed air to be prepared by user

STANDARS
ASTM D3078 , ASTM F1585, GB/T 15171

Minimum Order: 1 sets
