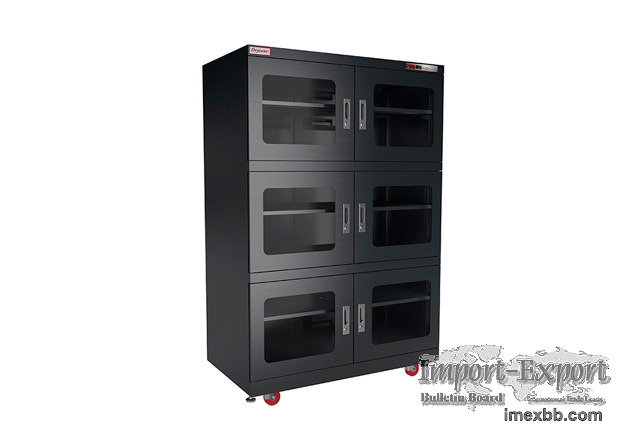

<5% Rh Dry Cabinet C2E Series

C2E Series is auto less than < 5% RH, just plug it, and it could work.
According to IPC/JEDEC J-STD-033 standards, moisture-sensitive device (MSD)
levels of 4, 5, 5a, and 6 should be stored in a <5%RH environment. C2E Series
is specially designed for this need. And the recovery time is 30 minutes after
opening the door and closed within 30 seconds without fill N2.

Specifications of <5%Rh Humidity Control Dry Box C2E Series
C2E-1200-6 Hygrometer Dry Box
Outside Dimension W1200*D695*H1820MM
Internal Dimension W1198*D645*H1618MM
Capacity 1250L
Shelves 5 shelves
Power Consumption 105w/h(Ave); 300w/h(Max)
Color Black
ESD Paint 106~109Ω (surface resistance)
Voltage 230V/110V

C2E-600 Dry Cabinet
Outside Dimension W600*D695*H1820MM
Internal Dimension W598*D645*H1618MM
Capacity 624L
Shelves 5 shelves
Power Consumption 55w/h(Ave); 150w/h(Max)
Color Black
ESD Paint 106~109Ω (surface resistance)
Voltage 230V/110V

C2E-400 Dry Cabinet
Outside Dimension W600*D695*H1274MM
Internal Dimension W598*D645*H1071MM
Capacity 413L
Shelves 3shelves
Power Consumption 55w/h(Ave); 150w/h(Max)
Color Black
ESD Paint 106~109Ω (surface resistance)
Voltage 230V/110V

C2E-575 Dry Cabinet
Outside Dimension W905*D823*H1050MM
Internal Dimension W903*D773*H869MM
Capacity 607L
Shelves 3shelves
Power Consumption 55w/h(Ave); 150w/h(Max)
Color Black
ESD Paint 106~109Ω (surface resistance)
Voltage 230V/110V

C2E-315 Dry Cabinet
Outside Dimension W905*D475*H1050MM
Internal Dimension W903*D425*H869MM
Capacity 334L
Shelves 3shelves
Power Consumption 55w/h(Ave); 150w/h(Max)
Color Black
ESD Paint 106~109Ω (surface resistance)
Voltage 230V/110V

C2E-157 Dry Cabinet
Outside Dimension W600*D672*H1820MM
Internal Dimension W448*D425*H869MM
Capacity 165L
Shelves 3shelves
Power Consumption 55w/h(Ave); 150w/h(Max)
Color Black
ESD Paint 106~109Ω (surface resistance)
Voltage 230V/110V

Features of <5%Rh Dry Cabinet C2E Series
Humidity range <5%RH
Display Precision 3%RH, 1℃
Structure 1mm thick carbon steel with paint.
Door Handles, airtight magnetic sealers, and reinforced glass.
Wheel Four 3'' wheels, two of them with brakes.
Grounding Wire 1MG (940mm Long)

If you want to buy dry cabinet, please contact us.

Minimum Order: 4000 sets
