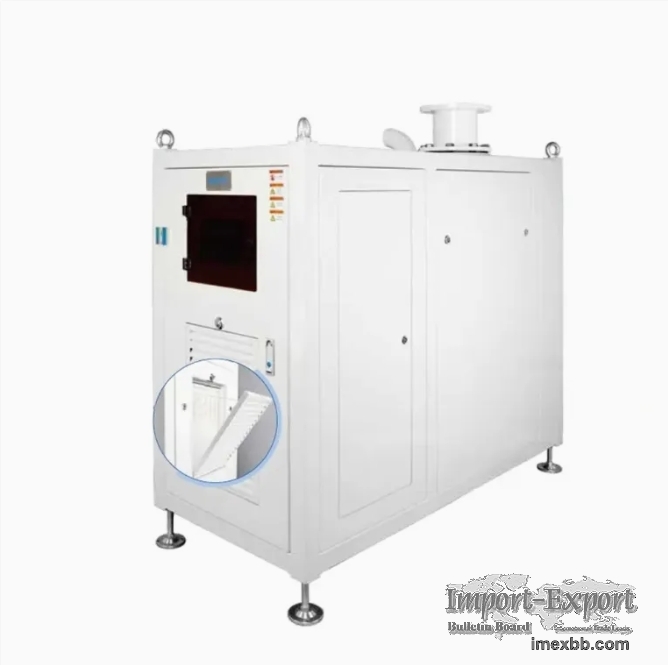

Lz055b80 Maglev Turbo Blower/Oil-Free Maglev Centrifugal Turbo Blower Alter

constituent:
The impeller of magnetic suspension centrifugal fan is driven by direct
connection between AL7075 impeller and motor. The efficiency of impeller can
reach 92% and the service life of impeller can reach more than 20 years. The
adjustable range of the fan can reach 45%~100%, and the working range is very
wide.

Using the leading ultra-high speed permanent magnet synchronous motor
technology, high-speed operation can be realized, and the efficiency of the
motor can reach 97.9%. The permanent magnet synchronous motor is equipped with
a speed regulating device consisting of a high-performance high-speed real-time
digital controller. The system has the advantages of simple control, energy
saving, stable speed and low noise. Permanent magnet synchronous motor is
mainly characterized by convenient speed regulation, wide speed regulation
range, stable operation, low noise and high efficiency. The speed range is
large, the service life is much longer than that of traditional motors, and it
can meet the speed requirements in various operating modes.

integrated magnetic suspension bearing, high speed permanent magnet synchronous
motor, high efficiency flow parts, special control system and a series of
advanced technologies, high efficiency and energy saving of the whole
machine.Compared with traditional Roots blower, the efficiency is increased by
30%~40%.Taking 160kW maglev blower as an example, each one can save more than
500,000 degrees of electricity per year compared with the traditional Roots
blower, and the cost can be recovered in about 1 to 2 years.
Model NO.
Lz055b80
Flow Direction
Centrifugal
Pressure
High Pressure
Color
Blue
Installed Power
55
Lubricating Medium
No
Type of Motor
Maglev Turbo Blower
Transport Package
Wooden Case
Specification
LZ
Trademark
Greent , ech
Origin
China
HS Code
8414
Production Capacity
5000pieces/Month

Minimum Order: 1 sets
