M03 Series Universal Yellow PET 4 SMT Single Splice Tapes For Carrier Tape

Product Description

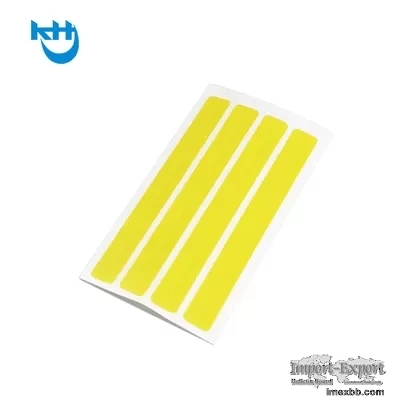

M03 Series Universal Yellow PET SMT 4 Single Splice Tapes For Carrier Tape

M03 Series Universal Yellow PET 4 SMT Single Splice Tapes For Carrier Tape 0

DESCRIPTION
M0308 Single Splice Tapes are recommended for use with the splice tool and
clip. When used

together, they create a stronger connection, especially on larger carrier
tapes.


Part (reel)
Dimensions (pc)
Package
M03 Series Universal Yellow PET 4 SMT Single Splice Tapes For Carrier Tape
1
M0308 (8mm) 4.8mm x 45mm 4000pcs/box
M0312 (12mm) 7mm x 45mm 4000pcs/box
M0316 (16mm) 9.5mm x 45mm 4000pcs/box
M0324 (24mm) 17mm x 45mm 2000pcs/box


APPLICATION ADVANTAGES
1. Yellow colored strips of PET tape used

1. Increase Pick and Place machine output

to join SMT carrier tapes

by 5% - 30%

2. Use with the splice tool and clip to

2. Reduce reel change downtime

create a stronger connection, especially

3. Decrease machine abrasion by reducing

on larger carrier tapes

the need to reload the feeder
3. 32mm-44mm available upon request


INSTRUCTIONS

1.Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier
tapes.

2.Place a M0600 splice clip (teeth up) on the (MTL00/MTL10/MTL50) splice
tool’s placement pins.

3.Center both carrier tapes (cover tape up) on the pins, and secure with the
clamps.

4.Crimp the tool handle to connect the carrier tapes.

5.Remove the release liner of the splice tape to reveal the adhesive side.
6.Add a single strip to the cover tape and press firmly to complete the
splice.

Click to Enlarge
