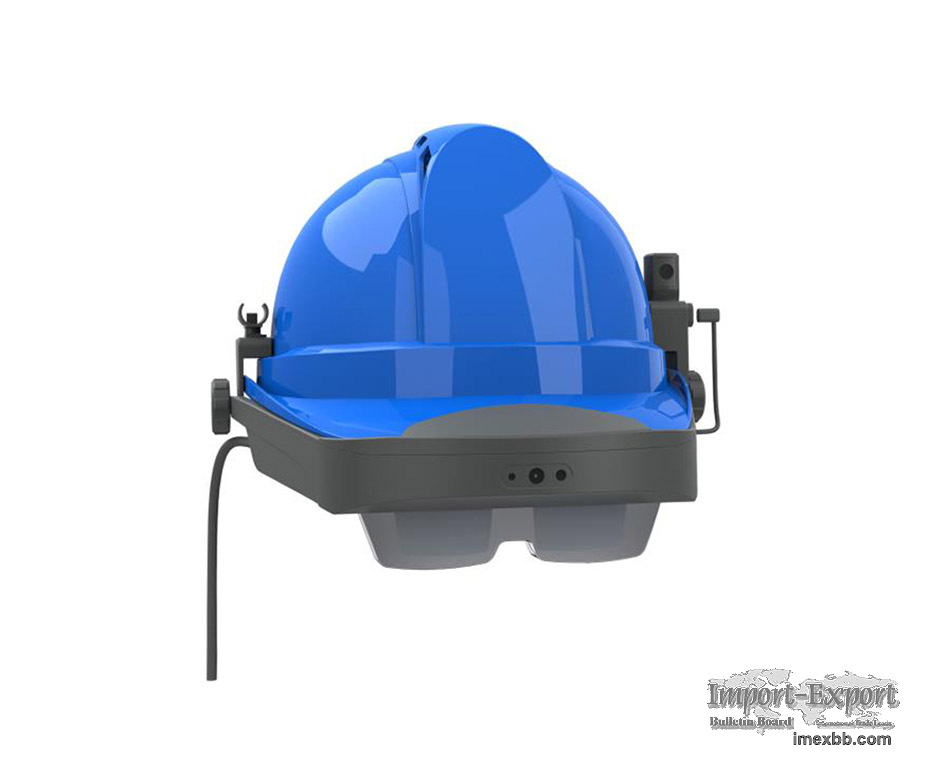

M100S AR Glasses

The M100-S fire transmission system can be adapted to various fire protection
masks, which integrates video information collection, display, and
transmission. In the fire rescue, the conventional images and thermal images of
the scene are collected from the firefighter's first perspective and
transmitted to the firefighters and rear commanders in real-time. Based on the
scene information, the industrial smart glasses assist the scene fire rescue
and provides a basis for the rear fire command.

Technical Specifications Of M100S AR Glasses
M100S AR Glasses Description
Thermal imaging camera 256x192 resolution
Display Optical waveguide display lens
Command platform Android APP.+Win10+cloud
Connection terminal PC, Android phone, Android tablet, 4G SIM
Thermal imaging camera parameters Wavelength range: 8~14um
Thermal sensitivity (NETD) ≤60mK@25℃
Non-uniform correction Automatic shutter correction
Focusing method Non-thermal fixed focus lens
Field of view 52x46 degrees
Virtual imaging 55”3 meters
Eyebox 7.6x10mm
Micro display size OLED, 0.23"
Resolution 640(H)x400(V)
Light transmittance 80%
Main chip HiSilicon 3520D
Charging voltage 5.0V
Charging port Micro USB
Battery capacity 2500mAh
Maximum continuous working time 1.5 hours
Internal storage 64Gb
Waterproof rating IP67
System weight 250 grams
Certification Explosion-proof certification (Ex ic IIB T4 Gc)
Features Of M100S AR Glasses
As one of AR glasses manufacturers, we provide the mask-type ar glasses with
multi-function such as small size, lightweight, convenient operation,
comfortable wearing, and do not affect firefighters' normal fire fighting
operations.
As AR glasses for sale, M100-S integrates a thermal imaging camera, optical
waveguide display lens, image processing chip, wireless transmission chip, and
antenna, etc.
Firefighters can penetrate the smoke to find the trapped people and the inside
of the fire scene, and at the same time, the firefighters can put out the fire
and rescue the injured in time in the smoke.
The video images of video smart glasses inside and outside the fire scene are
transmitted to the rescue command system in real-time for decision-making.

Goolton is a professional augmented reality companies, we provide augmented
reality glasses, ar on glasses, ar wearables, smart eyes glasses, smart glasses
heads up display and etc. Want to know more? Please contact us.
