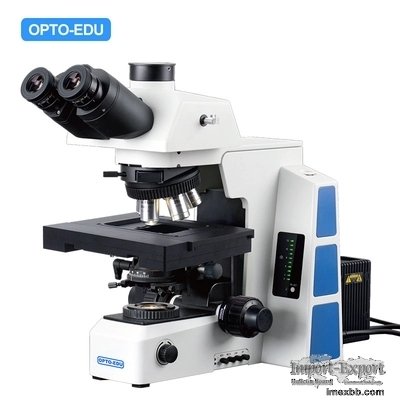

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized

Motorized Biological Microscope, BF, XYZ Motorized
Infinity Plan Semi-APO 4x10x20x40x100x Objectives With 6 Holes Motor Nosepiece
X/Y/Z Motorized Stage Large Moving Range 100x100mm Resolution 0.05um
Full Auto 2D Scan Image Stitching With Quick & Precise Mode
Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching &
Measuring
USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed
Software
Item M12.5850 3D Full Auto SDF Biological Microscope M12.5850
M16.5850 Cata. No.
M16.5850 3D Full Auto SDF Fluorescent Microscope
Optical System Infinity Optical System, BF Bright Field ● ● 　
Semi-APO, Semi Apochromatic ● ● 　
APO, Apochromatic ○ ○ 　
DF, Dark Field ○ ○ 　
PL, Polarzing ○ ○ 　
PH, Phase Contrast ○ ○ 　
DIC, Different Interference Contrast ○ ○ 　
FL, Fluorescent ○ ○ 　
Head 30° Inclined Erect Image Infinity Gemel Trinocular Head,
Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100,
○ ○ A53.0913-T30E
30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary
Distance 50~76mm; Light Splitting Ratio Switch R:T=100:0 or 20:80 or 0:100
● ● A53.0913-T30
5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary
Distance 50~76mm; Light Splitting Ratio 50:50 or 100:0 or 0:100 ○ ○
A53.0913-T535
Adapter 0.5x C-Mount, For 1/2"CCD, Focus Adjustable ● ●
A55.0930-05
0.35x C-Mount, For 1/2"CCD, Focus Adjustable ○ ○ A55.0930-35
0.65x C-Mount, For 1/2"CCD, Focus Adjustable ○ ○ A55.0930-65
1.0x C-Mount, For 1"CCD, Focus Adjustable ○ ○ A55.0930-10
Digital Camera USB3.0 CMOS Cooling Digital Camera, For Fluorescent Imaging, GS
Shutter, 20M, 1” CMOS, 30@1824x1216, Semi-Conductor Cooling Range -42°C,
Anti-Frog, One Hour Exporsure, C-Mount ● ● A59.2225-20MPA
Eyepiece High Eyepoint Plan PL10x/25mm, Diopter Adjustable ●●
●● A51.0904-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable ○ ○
A51.0904-10265T
High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle ○ ○
A51.0905-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle ○
○ A51.0905-10265T
Nosepiece BF 6 Holes, With Socket For DIC Slide & Polaring Analyzer
Slide, Coded & Motorized Control by Software ● ● A54.0930-R6
Objective Infinity Plan Semi-APO Fluorescent Objective 　 　 　
Semi-APO Fluorescent 4x/0.13, W.D.=16.43mm ● ● A5F.0950-4
Semi-APO Fluorescent 10x/0.3, W.D.=8.13mm ● ● A5F.0950-10
Semi-APO Fluorescent 20x/0.5, W.D.=2.03mm ● ● A5F.0950-20
Semi-APO Fluorescent 40x/0.75, W.D.=0.74mm ● ● A5F.095040
Semi-APO Fluorescent 100x/1.3, W.D.=0.18mm ● ● A5F.0950-100
Infinty Plan APO Flourscent Objective 　 　 　
APO Fluorescent 2x/0.08, WD=6.2mm ○ ○ A5F.0951-2
APO Fluorescent 4x/0.13, WD=16.6mm ○ ○ A5F.0951-4
APO Fluorescent 10x/0.40, WD=2.1mm ○ ○ A5F.0951-10
APO Fluorescent 20x/0.75, WD=0.6mm ○ ○ A5F.0951-20
APO Fluorescent 40x/0.95, WD=0.15mm ○ ○ A5F.0951-40
APO Fluorescent 60x/0.90, WD=0.26mm ○ ○ A5F.0951-60
APO Fluorescent 100x/1.35, WD=0.13mm ○ ○ A5F.0951-100
Centering Objective For Fluorescent ○ ● A5F.0930-1
Focusing Low-Position Coaxial Coarse & Fine Adjustment, Coarse
Adjustment Distance: 25mm; Fine Precision: 0.001Mm. With Coarse Adjustment Stop
And Tightness Adjustment. ● ● 　
Main Body Transmitted Biological Main Body, ● 　 　
Digital Dimming System With Light Indicator, Brightness Set & Reset Function,
With ECO Function
Reflected &Transmitted Fluorescent Main Body, 　 ● 　
Digital Dimming System With Light Indicator, Brightness Set & Reset Function,
With ECO Function
Transmit 12V100W Halogen Lamp House, Pre-Centered ● ●
A56.0915-LH
Light 12V100W Halogen Bulb (Philps 7724) ● ● A56.0923-12100
　 Swing-out Type Achromatic Condenser, N.A.0.9/0.25 ● ●
A56.0934-R
　 Built-In Transmit Filters LBD/ND6/ND25 ● ● 　
Reflect Epi Full Set, 6 Holes Reflect Epi-Fluroescent Illumation, With Iris
Diaphragm, With Aperture Diaphragm, With Filter Slot, With Polarizing Analyizer
Slot, With Protect Barrier, With Fluroescent Shutter 　 ●
A5F.0906
Fluorescent Light --100W Mercury Light Box, Center Adjustable
　 --Digital Power Supply 90~240V
　 --HBO 100W Mercury Bulb OSRAM
　 --Attenuation Filter ND50
　 --Fluorescent Filter B,G,UV
　 --Fluorescent Filter V 　 　 A5F.0906-V
Power Built-In 100-240V Wide Voltage Transformer ● ● 　
Other Allen Key M4 ● ● 　
Universal Condenser For Dark Field, Polarizing, Phase Contrast, DIC View
Universal Condenser Universal Condenser, Disc With 8 Holes For Function DF,
PL, PH, DIC ○ ○ A56.0960
--3 Small Holes For Phase Contrast Rings A5C.0960, PH Objectives A5C.0961
--3 Big Holes Only For DIC Rings A5M.0960
--2 Big Holes Center Adjustable, For Dark Field Ring A5D.0960 or DIC Ring
A5M.0960
--Polarizier Lens Included In Socket Under Universal Condenser
--Need to Select N.A.0.9 Condenser Lens As Standard
N.A.0.9 Condenser Lens, Standard Selection, For Objective 10x20x40x60x100x
○ ○ A56.0960-09
Screw On Universal Condenser Disc
N.A.0.2 Condenser Lens, Optional Selection, For Objective 4x ○ ○
A56.0960-02
Screw On Universal Condenser Disc
N.A.1.4 Condenser Lens, Optional Selection, For Objective 20x40x60x100x ○
○ A56.0960-14
Screw On Universal Condenser Disc
Dark Field Dark Field Ring, Dry Type N.A.0.9, For Objective 10x,20x
○ ○ A5D.0960-D
Dark Field Ring, Immersion Oil Type N.A.1.4, For Objective 40x,60x ○
○ A5D.0960-I
DIC Transmission DIC Slide, Insert To DIC Socket On Nosepiece ○
○ A5M.0960
Transmission DIC Ring 10x ○ ○ A5M.0960-10
Transmission DIC Ring 20x ○ ○ A5M.0960-20
Transmission DIC Ring 40x/60x ○ ○ A5M.0960-4060
Phase Contrast Infinity Plan Apochromatic Positive Phase Contrast Objective
○ ○ 　
APO Objective APO PH 4x/0.16, WD=12.8m ○ ○ A5C.0950-4
　 APO PH 10x/0.40, WD=2.5mm ○ ○ A5C.0950-10
　 APO PH 20x/0.75, WD=0.6mm ○ ○ A5C.0950-20
　 APO PH 40x/0.95, WD=0.15m ○ ○ A5C.0950-40
　 APO PH 60x/0.90, WD=0.26mm ○ ○ A5C.0950-60
　 APO PH 100x/1.35, WD=0.13mm ○ ○ A5C.0950-100
Polarizing Polarizier Lens Included In Plug-in Socket Under Universal
Condenser ○ ○ 　
Analyzer Slide, Insert To Analyzer Socket On Nosepiece ○ ○
A5P.0960
Upgrade Series Model
Metallurgical Upgrade to M13.5850 3D Full Auto SDF DIC Metallurgical
Microscope, APO 　 　 M13.5850
Remark: '●' Means Standard Outfit, '○' Means Optional
