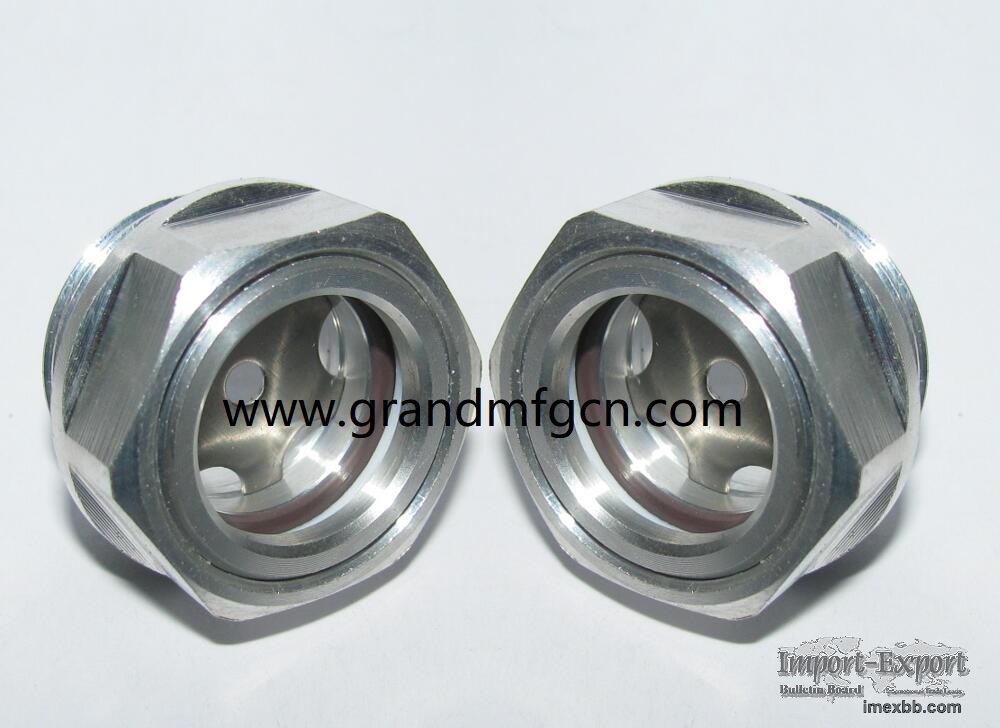

M14x1.5 aluminum oil level indicator sight glass plug for air compressor

GrandMfg® Aluminum Oil level sight glass window indicator plugs

Material Body: Aluminum 6061 T6/Aluminum 6063

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

Seal: Viton/FKM/FPM,NBR, Aramid gasket,Teflon and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can
add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-40'C to 180'C

(Different seal have diferent temperature range)

Pressure Range: 5-50 Bar(0.5MPa to 5 MPa).

Thread type:NPT,NPTF,UNC,UNF,UNEF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are
welcome.

Application:Air Pump,Receivers,Reservoir Coolant
Tank,HydraulicTanks,Gearboxes,Speed Reducer,Gear unit,Compressor,blower and
Power Transimission.

Minimum Order: 200 pieces
