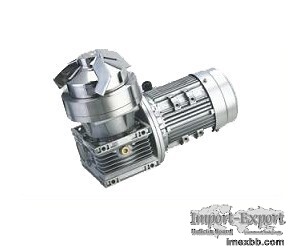

Magnetic Blender

Description:
Magnetic mixing is a fully enclosed, no leakage, and corrosion-resistant mixing
method. Due to its non-contact torque transmission, the static sealing to
replace dynamic sealing completely solves the leaking problem of mechanical
sealing. The equipment is mainly applied to Pharmaceutical, Food machinery
heating, resolving the material

Working principles
1. A vortex produced by the mixing impeller sucks the soluble powder or liquid
towards the impeller
2. After reaching the impeller, the fluid flows in a radical direction rush to
the tank wall due to the centrifugal force
3. After reaching the tank wall, the fluid travels upwards and then circulates
down to the suction end of impeller
4. The overall bulk movement and the mixing action around the mixer ensure that
a homogeneous, mixing, dissolving, dispersing blend is achieved

Design and features
1. High blending capacity with low shear
2. Magnetic coupling, no risk of leakage
3. CIP/SIP design
4. Bayonet coupling for easy assembly/disassembly of the drive unit
5. Low power consumption
6. Effective blending even of small volume
7. Very low particle generation
8. Bottom mounted. Excellent for suspensions
9. Frequently converter recommended

Application
1. Bottom entry magnetic agitator, also called magnetic mixer, presents a
highly hygienic solution for the applications of dispersion, dissolution,
homogenization and mixing of a wide range of media in the pharmaceutical
industry
2. The magnetic agitators are especially useful in sterile process; Absence of
mechanical seals prevents any contact with the exterior environment
3. The most common applications are dissolution of glucose in dematerialized
water, maintenance of vaccine suspensions homogeneity and agitation of blood
fractions, also for pharmaceutical such vaccine mixing

Materials
Rotor AISI 316L or 304
Welding plate AISI 316L
Bearing SIC
Surface finish Ra< 0.5

Options
Bearing: SiC.
Parts in contact with the media:
Special materials
Electropolished.
Speed sensor.
Control panel.
With warm speed reducer: Fixed speed range from 50-186rpm (according to
different process)
Wish gear speed reducer: Fixed speed range from 150-600rpm (according to
different process)
With 6-pole motor: Fixed speed at 960 rpm, which can be equipped with frequency
converter, to control the speed.

Selection table:
Model Torque power
150rpm 70rpm 35rpm
HSMB20 20N. M 0.37 0.25 0.18
HSMB40 40N. M 0.75(0.55) 0.37(0.55) 0.25(0.37)
HSMB80 80N. M 1.1 0.75 0.37(0.55)
HSMB120 120N. M 1.5 1.1 0.55(0.75)
HSMB150 150N. M 2.2 1.5 0.75(1.1)
HSMB200 200N. M 3 2.2 1.1(1.5)
HSMB300 300N. M 4 3 1.5(2.2)
HSMB500 500N. M 7.5 (5.5) 5.5(4) 4(3.0)
HSMB800 800N. M 11 7.5 5.5(4)
HSMB1000 1000N. M 15 11 7.5(5.5)

Note: 1, a few general parameters noted above, pursuant to the request of the
customer, mixing form and concentration and viscosity of the medium,
temperature, pressure and change.

Minimum Order: 1 sets

Click to Enlarge
