Magnetic Drawer

Custom Magnetic Filter, Magnetic Separator, Magnetic Coupling, and other Magnet
Assemblies are provided. As magnetic assemblies manufacturers, Leyuan Group has
been an experienced magnetic products manufacturer in China since 1995. We
manufacture a range of main magnetic products comprising magnetic filters,
magnetic couplings, permanent magnets, and custom shaped magnets. These can be
used in numerous fields including food processing, pharmaceutical, and chemical
development, etc.

Dry Powder & Particle separation

Magnetic drawers, also named drawer type magnetic grill, are made from magnetic
grates in a 304L or 316L stainless steel case. As one kind of popular magnetic
separator, drawer type magnetic grill separate ferrous particles from the
desired product. The magnetic field intensity of the drawer-type magnetic grill
is over 13000Gs and so is applicable to all kinds of powder industries.

LEYUAN supplies standard-style magnetic drawers (plate magnetic separators),
easy-cleaning styles, pneumatic easy-cleaning styles, and customer-made
magnetic drawers with food grade or sanitary grade features, etc.

Features of Magnetic Drawers
No energy consumption, no pollution, and easy to clean

Simple structure, easy to install, and can be installed in the pipeline or
outlet of the production line.

The magnetic bar and the magnetic spacing is carefully designed so that the
strong magnetic area can be more fully utilized.

Drawer-type magnetic filters have many specifications and the specific size can
be designed and manufactured according to the requirements of customers.

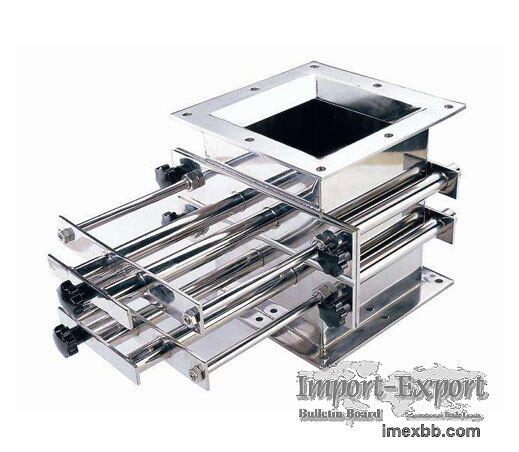

Diagram Of Magnetic Drawers

Specification A B C Flange D E
Dia of Rod F
Dia of tube G H Layers No of rods
MY160-2 160 160 400 DN100 110 25 28 50 100
2 5
MY160-3 500 25 28 50 100
3 8
MY220-2 220 220 400 DN150 161 25 28 50 100
2 7
MY220-3 500 25 28 50 100
3 11
MY270-2 270 270 400 DN200 222 25 28 50 100
2 9
MY270-3 500 25 28 50 100
3 14
MY330-2 330 330 400 DN250 276 25 28 50 100
2 11
MY330-3 500 25 28 50 100
3 17
MY380-2 380 380 400 DN300 328 25 28 50 100
2 13
MY380-3 500 25 28 50 100
3 20

Click to Enlarge
