Marine GPS Antenna 3M MCX Right angle

Marine GPS antenna equips innovative, high quality, performance and built-in RF
protection circuit to protect the active LNA and high gain as well as value-added
design at a wide range of power supply from 3v ~ 6v for any kinds of receivers.

Performance
Marine GPS antenna has ultimate performance and unique design which meets Marine,
Networking and any GPS applications, which requires maximum performance and
complete support.

Features
● 10W RF protection
● Standard WAAS tune
● Short-circuit protection
● Wide range power input voltage from +3v ~ 6v
● Narrow band width at 10MHz for real GPS L1 signal
● Cable length 3M
● 2 stages active LNA
● Dual Filters BPF(directric)& LPF(lump element)
● Dielectric patch antenna
● Low noise, linear regulator
● High current shut down
● Radio frequency interference immunity (RFI)
● Improve overall GPS system resistance to interference

General
Architecture Design :
2 Stages active LNA
Dual Filters, (BPF(dielectric) & LPF(lump element))
RF protection (10watt), nano-second Spark-Gap
Dielectric Patch antenna
Low Noise Low drop-out, Linear Regulator

Performance
Receiving Frequency :L1 Band(1575MHz)
Output Impedance:50 ohms
Polarization’s:Right Hand Circular (RHC)
Bandwidth:<50 MHz
VSWR:1.8 Typical @ 1575MHz
Elev. Angle Coverage:5~90 degree
Az. Bearing Coverage:360 degree
Filtering:Dual(BPF <50 MHz B/W >
Over-all Gain:28dB (typical including 4dB cable loss & Filters)
Over-all NF:<1.8dB @fo, 2dB max.
LNA Characteristic:K=>1 Un-conditionally Stable
RF Insertions loss:0.1dB, leakage power 100mW /1 watt input

Electrical
Power Input:+3Vdc to +6Vdc input, AutoSwitch
Power Consumption:25mA
Power Input Sensor:Reverse Polarity Short Circuit shutdown
Over-Current Sensor:Thermal Over-current shutdown >+150degreeC

Physical
Dimensions:79d x 58h x 13mm
Mount:13mm treaded (1/2inch)
Radome Color:White
Coax Connector:BNC,SMA,TNC, MCX
Coax Cable:RG-58, RG-174, RG-316

Environmental
Operating Temperature:-30 to + 85 degree C
Storage:-40 to + 90 degree C

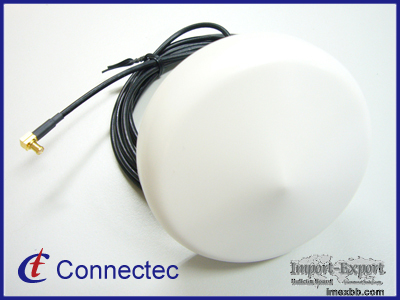

Marine GPS Antenna 3M MCX Right angle
