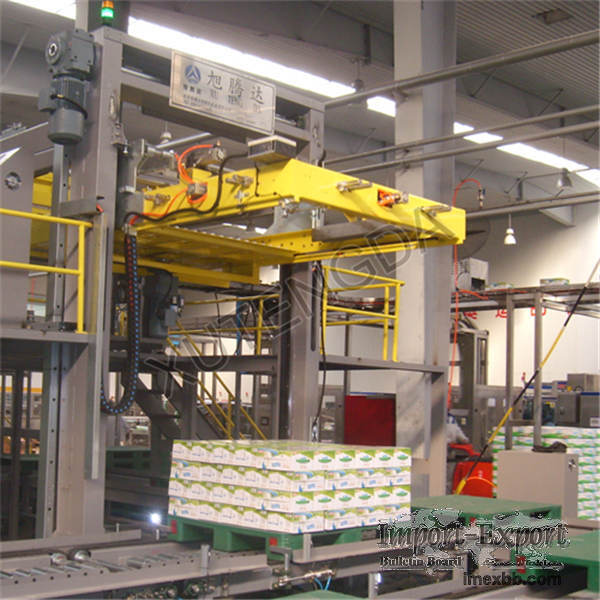

Mechanical Palletizer XMD-ZS35

Lower-bed automatic palletizer put the cartons on the pallet in order,
automatic palletizing, can pallet several layers, then will push the pallet
out, easily for the forklift transport to warehouse for storage. It adopts
separate stripping plate, the parts of the equipment: carton put in, collating
unit, lifting and pallet device, pallet stacking, automatic supply device and
the full pallet evacuator device.
Mechanical palletizer adopts PLC and touch screen control, to realize the
intelligent operation and management. When the door open, the equipment stop
work, then it can protect the safety of the workers. The adjustment of stacking
way is simple and easy.
Main Technical Specification
Type XMD-ZS35
Rated loading 150kg
Recyle time 300times/hour
The height of the pallet up to 1700mm
The size of the pallet 1200mm*1200mm
The height of the pallet Up to 2m
The box quantity of each layer The largest L#W:1200*1200mm
Grasp type Self-closing sucker
The size of the carton(L*W*H) Support 1200*1200*1700mm
Repeated positioning accuracy ±5mm
Voltage 380V、50HZ
Air pressure/Air consumption 6kg.f/cm 300nl/min
Power 12kw
Size L6500*W5000*H3250
Weight 3500kg
