Membrane Bioreactor

MBR China (Membrane Bio reactors) is a membrane separation technology with
biological degradation. The membrane module can take the places of the
secondary sedimentation tank, a large number of microorganisms are intercepted,
which can increase the quantity of microflora, improve the sewage treatment
capacity and efficiency, so that the effluent quality and volume load have been
greatly improved, and the water can be used as reclaimed water.

The core component of the MBR is high-performance submerged membrane
components. Compare with the traditional method (pressure filter), the membrane
negative pressure suction type filtering method using aeration to operation a
sable mbr filter membrane in the system.

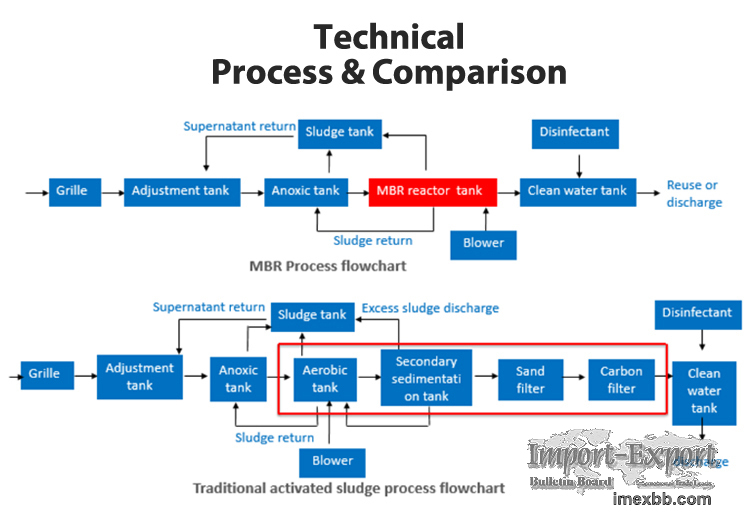

Technical Process and Comparison of Membrane Bioreactor

The pollutant in sewage water will firstly biodegradation in a bioreactor, at
the same time, because of the function of the pressure difference, the water,
and some small-molecule solute which smaller than the aperture of the membrane
in the mixed liquid will pass the membrane, and then become the treated water.

Microorganisms and macro solute will be intercepted by the membrane, so it
replaced the sedimentation tank by complete its water treatment and separate
function.

Work Principle of MBR Membrane Filter Bioreactor
Use the PVDF as the main material, Rosun flat sheet membrane with good
stability of chemicals used in wastewater treatment, fouling resistance, and
mechanical strength, has different types according to its efficacy area.

Product Details of Membrane Biological Reactor

Advantages of membrane biological reactor wastewater treatment

Advanced material:

The main material of the membrane is PVDF, which has excellent chemical
stability, permeate flux, permeate quality, and fouling resistance.

Better outlet water quality:

The pore size of Rosun flat sheet membrane is around 0.1micron, and with
advanced membrane technology increased the effective orifice area of the
membrane surface then leads to excellent permeate flux and permeate quality.
The output water can be reused directly.



Higher activated sludge adaption of Membrane Bioreactor:

Compared with the hollow fiber curtain membrane whose activated sludge adaption
is only 4000-6000mg/L, Rosun flat sheet membrane can adapt 8000-15000mg/L
activated sludge.

Longer service life:

Compared with hollow fiber curtain membrane, Rosun flat sheet have a longer
service life of 3-6 years compared with 1-3years of service life of hollow
fiber curtain membrane.

Less land space:

The MBR reactor tank can replace the function of a secondary sedimentation tank
with an anaerobic tank, it can save 30% of land space.

Easy to operate and maintenance:

The flat sheet membrane can be just replaced a single damaged piece without
change the holder when damage and replacement, replace just need 15 minutes.
As a membrane filtration company we have high quality relative products for
sale, and the mbr membrane price is low, so if you have any needs to buy
anything, please contact us.
