Metal Roofing Tile Former

Metal Roofing Tile Former Introduction
Metal roofing fabrication machines are used to make metal roofing tiles. This
line includes a step pressing system. The system presses the panels formed by
the roll forming system. The step length can be set up and the depth of each
step is adjustable. Our roll forming equipment for sale is really cost-worthy.
1. The exquisite colored steel glazed tiles not only preserve the shape of
traditional terracotta tiles, but also show an elegant beauty, rich and bright
colors...
2. The material is light and high-strength. The weight of colored steel glazed
tiles is only about one tenth of that of traditional terracotta tiles, and the
strength is also unparalleled...
3. The surface of the long colored steel glazed tile has been treated with
anti-corrosion and anti-rust for many times, and it is not easy to be easily
oxidized, usually up to 30...
4. Water-proof color steel glazed tile slopes are seamlessly connected, the
sealing performance is quite excellent, with other roof building materials
unmatched...
5. Short construction time. The color steel glazed tiles are fast paved, the
construction time is shortened, the price is relatively reduced, and there is
no seasonal impact during construction.

Our products are of high quality among many metal roofing machines
manufacturers and we have diversified metal roofing roll forming machines for
sale, including the steel roof roll forming machine, metal sheet forming
machine and roof rolling machine.

Features and Advantages of Metal Roofing Tile Former
Metal roofing tile former (or metal sheet roof roll forming machine) is for
continuously roll forming and pressing step tiles sheets.
The step length can be set up and the depth of each step is adjustable.
Production speed: about 8 m/min.Certified with Multi-Patents; CE Certified,
EUROPEAN quality standard
Most of the hot & popular profiles models, we have ready roof tile roll
forming machines in stock for prompt delivery.

Sample Tile of Metal Roofing Tile Former

Popular Roofing Profile drawings of Metal Roofing Tile Former

Working Flow of Metal Roofing Tile Former
Coil Charging Car (optional)
Decoiler (passive/auto)
Front Shear(optional)
Feeding and Guiding Table
Filming Covering (optional)
Roll Forming System
Step Pressing System
Post-Cutting to length (Hydraulic)
Output Manual Supporter/Stackmaster(optional)

Step Roof Tile Line Layout

Metal Roofing Tile Former Application
Metal roof bending machine perform the elegant style of traditional roof tile
and suits for every architecture design. What’s more, it is much more
convenient and takes shorter time for installation.

Suitable Raw Material
Material type: Color coated Steel, Aluminum sheet
Thickness: 0.4-0.6(mm)
Yield Strength: 230-350MPa optional
Width: 1200/1220/1250(mm)

Production Line Components and Parameters
1. Decoiler 5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Filming covering device        optional
3. Front shear                 optional
4. Lubricating device            no need
5. Roll forming system           individual standing column structure
6. Safety cover                 optional
7. Step pressing unit      Step length, depth, head & end length is
adjustable
8. Post cutting              hydraulic
9. Output System Manual supporter/ Automatic Stacker (optional)
Stackmaster (Output direction) Lateral/Longitudinal (optional)
10. Hydraulic system Power supply for decoiler /post-cutting system
11. Electric control system MITSUBISH/ SIEMENSE/AMS (optional or as
requested)

Related information
Machine Condition Fully New, A Grade quality
Panel Shape As profile drawing and customer’s requirements
Operator needed 1-2 persons
Power Supply 220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weight About 15t
Dimension (L*W*H) about 25*3*2m
LOADING SIZE Normally need 1x 40' (+ 1x 20GP) container.
Equipment Color Normally Blue/White, or as requests;
Place of Origin Zhejiang, China (Mainland)
Packing Standard and careful export packing

Related Metal Roofing Tile Former

Minimum Order: 1 sets

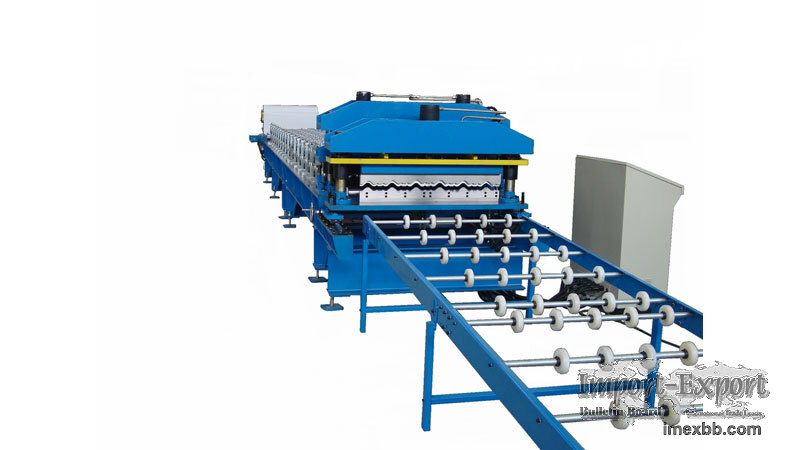

Metal Roofing Tile Former
