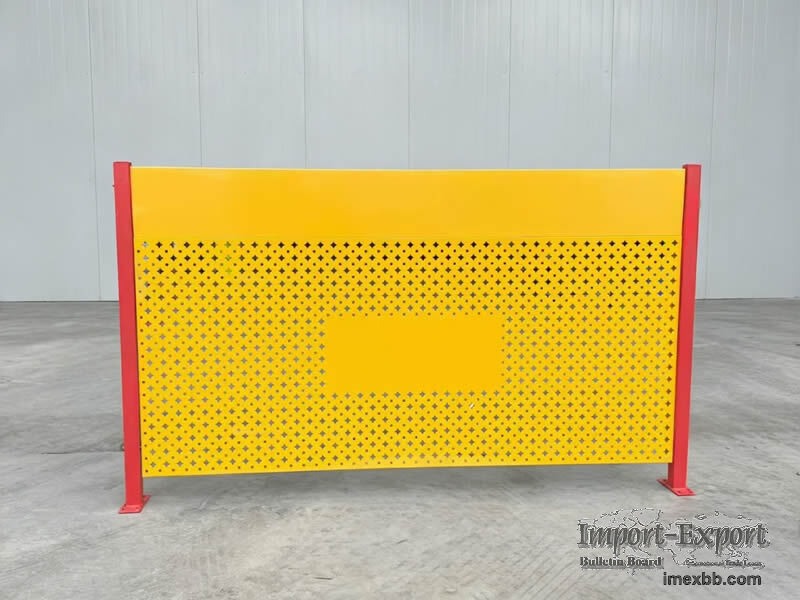

Metal Screen

Metal Screen panels are used for fence infill, workshop partitions, equipment
guards, site barriers, and decorative separation areas. The panels shown here
are mainly perforated metal screens and laser cut screen panels, supplied with
steel frames, posts, base plates, or top rails according to installation needs.
Common materials include Q235 carbon steel, galvanized steel, aluminum sheet,
and stainless steel. Surface treatment is usually powder coating, hot dip
galvanizing, or galvanized base with color coating. Hole pattern, panel size,
color, and frame design can be made from drawings or sample photos.
Youzi Development Zone, Anping County, Hebei, China
sales@wiremesh-fence.net
+86 133 8338 1333 / +86 13303187905
www.wiremesh-fence.net
Specifications
Produc , t name: Metal Screen

Main types: Perforated screen panel, laser cut screen panel, framed fence
screen, partition screen

Material: Q235 carbon steel, galvanized steel, aluminum sheet, stainless steel
304 or 316

Panel thickness: Commonly 1.0 mm to 3.0 mm for perforated panels. Thicker
plates can be made for heavy duty guards.

Frame material: Square tube or rectangular tube, commonly 30 x 30 mm, 40 x 40
mm, 50 x 50 mm, or made by drawing

Post type: Square post with base plate, embedded post, or custom fixing bracket

Panel size: Common fence panel sizes include 1000 x 2000 mm, 1200 x 2000 mm,
1500 x 2000 mm, and 1800 x 2000 mm. Custom height and width are available.

Hole pattern: Round hole, square hole, slot hole, diamond hole, geometric
cutout, decorative laser cut pattern

Surface finish: Powder coated, galvanized, hot dip galvanized, or stainless
steel natural finish

Color options: Yellow, blue, red, green, black, white, silver, and other RAL
colors

Installation: Base plate fixing, bolt connection, welded frame, or post mounted
system

Application
Fence and boundary panels: Used for factory areas, public facilities, machinery
zones, and commercial boundaries.

Indoor and workshop partitions: Suitable for separating work zones while
keeping light and airflow.

Equipment and safety guards: Used around machines, production lines, and
service areas where visibility is needed.

Decorative screening: Applied to building facades, garden dividers, balcony
panels, and architectural partitions.

Click to Enlarge
