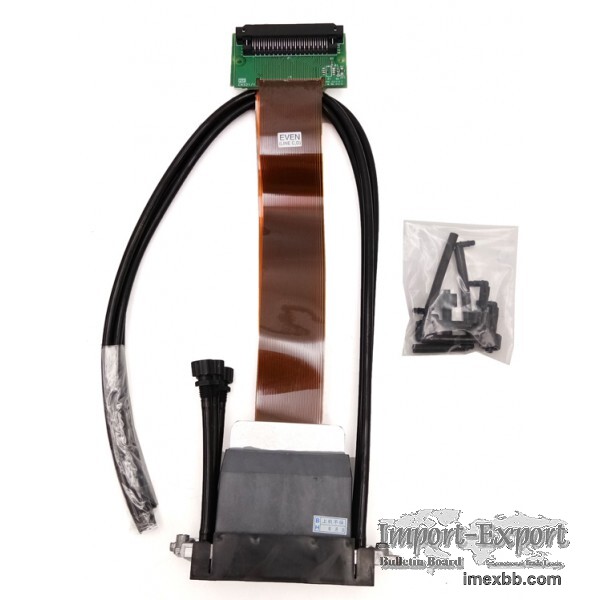

Mimaki JFX500-2131 GEN5 UV Printhead - M022626
Original Mimaki JFX500-2131 GEN5 UV Printhead - M022626
Ricoh Gen5 Printhead Mimaki G5 J36008 M022626 for mimaki SWJ-320 YG500 TX500 TS500 UJV500 JFX500 JV400-SUV JV400-LX
This printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022626 replacing M013497 and M015068).
Product Specifications
Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Life: 100 billion actuations per nozzle
Printer compatibility
Mimaki JFX500-2131
Mimaki UJV500-160
Minimum Order: 1 pieces
)
