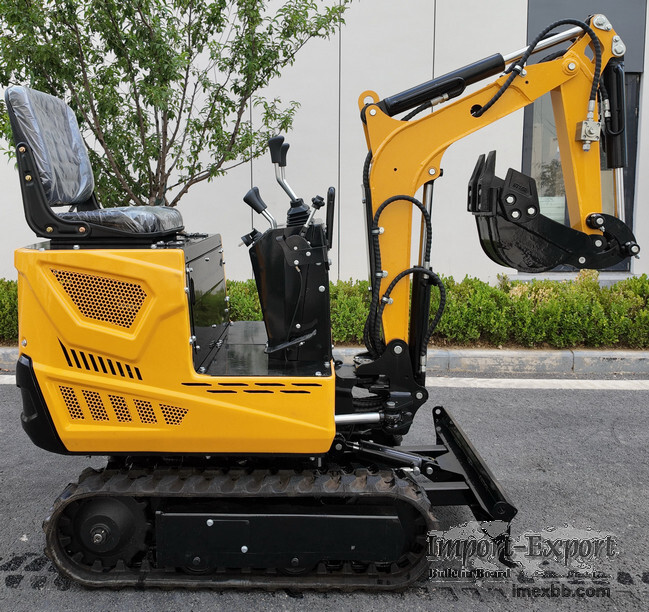

Mini Excavator Model TC06A1

Application:
1. Construction: Building foundations, trenching, demolition
2. Roadwork: Land leveling, ditch digging, material handling
3. Mining: Quarrying, ore extraction, loading
4. Agriculture: Land clearing, irrigation channel digging
5. Forestry: Log handling, land preparation

Feature:
1. The entire vehicle adopts a molded appearance, which is durable and in line
with public aesthetics. It is also convenient for maintenance and repair.
2. The entire vehicle is made of manganese steel plate.
3. Equipped with double gear pump, the action of the mini excavator is soft and
efficient.

Main Technical Parameters:
Spec: Rubber Track
Weight: 660kg
Engine: Emission Certification Euro 5 / EPA Optional
Model: Loncin G300FD
Rated Output Power/RPM: 6.8 (8.5)kW (HP)/rpm
Track:
Track Size: 150*72*34
Track Width: 150mm
Bucket Standard Bucket Capacity: 0.012m³
Standard Bucket Width: 200mm
Working Performance:
Max Digging Force (Bucket): 3.5KN
Max Digging Depth: 1091mm
Max Vertical Digging Depth: 1018mm
Max Digging Height: 2114mm
Max Dumping Height: 1386 mm
Max Digging Reach at Ground Level: 2254mm
Min Front Swing Radius: 1185mm
Speed:
Travel Speed: 1.5Km/h
Swing Speed: 9.5rpm
Hydraulic System:
Pump Type: Gear Pump 3+3
Pump Flow : 21.6L/min
System Pressure: 16MPa
Fuel Tank Capacity:
Gasoline Tank: 6L
Hydraulic Oil Tank: 11.4L
Transport Dimensions:
Overall Length × Overall Width × Overall Height: 2287*700*1350mm

Note:
1. Technical specifications are for standard model (without cabin) only.
2. Other optional parts & accessories and colors are available upon request.
3. All specifications and design characteristics are subject to change without
prior notice.
