Mini Manual Pushing 3.9 Meters Aerial Work Platform With Anti - Skid Checke

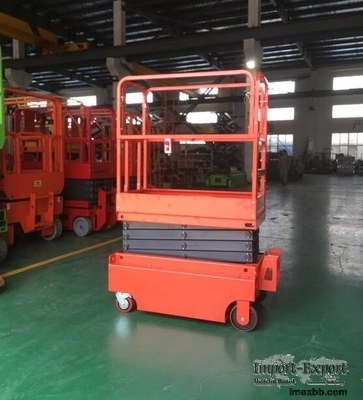

Mini Manual Pushing Mobile Scissor Lift 3.9 Meters Aerial Work Platform With
Anti-skid Checkered Plate



Parameter:

Loading Capacity 240kg
Platform Height 3900mm
Minimum Height (rails up) 1920mm
Minimum Height (rails down) 1520mm
Platform Size 1150mm*700mm
Ground Clearance​ 60mm
Motor Power 0.8kw
Power Voltage DC12V
Raise / Lower Time 34s / 21s
Cylinder Ф55(1Pc)
Gear Pump 4ml/r
Total Weight 516kg
Overall Size 1300*760*1920mm


Description:

This mini scissor lift is easy to use. The control panels are available on the
platforms and ground.
The user can control the machine walking and lifting operation directly on the
platform, and realize the single person working continuously at high altitude.

Because it is miniature, the height is limited, suit low position aerial work.
They are used to provide contractors with temporary access to high-altitude
areas that are inaccessible to various workplaces, such as maintenance,
construction projects or fire crews emergency access.

The scissor structure enables reliable stability when the lifts rising up, the
broad platform and the high loading capacity get the aerial working more
efficient and more safely.



Main Features:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti skid floor in platform
4. The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails
7. Battery and battery charger in bulit
8. Optional extension platform



Major Parameters:

Model: MK390
Loading Capacity 240kg
Maximum Height 3900mm
Minimum Height (rails up) 1920mm
Minimum Height (rails down) 1520mm
Platform Size 1150*700mm
Lifting Power 0.8kw
Power Voltage DC12V
Raise / Lower Time 34s / 21s
Total Weight 516kg
Overall Size 1300*760*1920mm


Configurations:

Electric system: Schneider contactor, SANLICO button, CHNT electrical
Hydraulic System: Hycman brand power pack ,NOK sealing
Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
Platform Surface : Antiskid checkered plate
Tyre: 6inch and 8inch, two swivel and two fixed​
High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Safety Precautions​:
1. The operation voltage on the platform is 24V
2. Emergency stop button on the platform and ground
3. Auxiliary platform lowering
4. Hose burst valve safety
5. Rain-proof design electric cabinet
6. Fold-able fence on the platform



Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition
Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why choose CHEN LIFT Mobile Scissor Lift?

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
