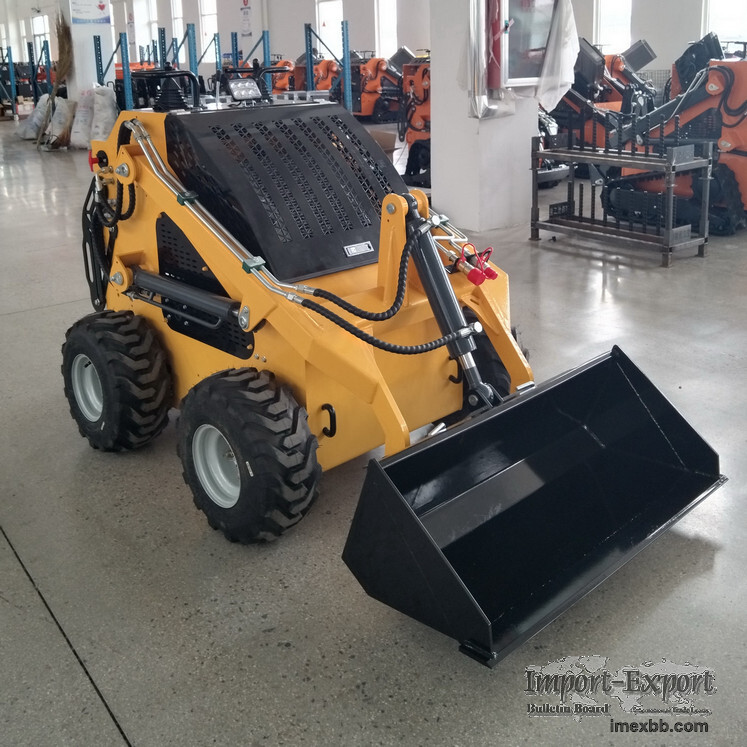

Mini Skid Steer Loader Model S460

Application:
It is mainly used in situations where the working site is small, the ground is
uneven, and the work content changes frequently. It is suitable for
infrastructure construction, Industrial applications, dock loading and
unloading, urban streets, residential buildings, barns, livestock sheds,
airport runways, etc. It can also be used as auxiliary equipment for large-
scale engineering construction machinery.

Feature:
1. Compact and agile, facilitating operations in small terrains and confined
spaces.
2. Convenient to operate and easy to transport;
3. Constructed from high-quality, thickened steel and treated with a powder-
coating process for superior rust and corrosion resistance.
4. With 360-degree body rotation, its agile chassis brings convenience to
outdoor operations.

Main Technical Parameters:
Engine:
Engine model: RATO 740 Gasoline Engine
No. of cylinders: 2
Rated Power: 15 kW
Performance:
Operating height: 2450 mm
Height to bucket hinge pin: 1870 mm
Overall height: 1250 mm
Overall length with GP bucket: 2206 mm
Overall length without bucket: 1680 mm
Wheel base: 850 mm
Overall width: 1130 mm
Min. ground clearance: 120 mm
Max. dumping height: 1410 mm
Rated load: 300 kg
Rate bucket capacity: 0.12 m³
Bucket width: 1050 mm
Tire type: 18*8.5-8
Operating weight: 1000 kg
Operating system pressure: 17 bar
Fuel tank capacity: 10 L
Travel speed: 0-5 km/h

Note:
1. Technical specifications are for standard model (without cabin) only.
2. Other optional parts & accessories and colors are available upon request.
3. All specifications and design characteristics are subject to change without
prior notice.

Mini Skid Steer, Stand-on Skid Steer, Compact Utility Loader, Mini Track
Loader, Mini Loader, Mini Skid Steer Loader, Compact Skid Steer Loader, Chinese
Mini Skid Steer, Chinese Stand-on Skid Steer, Chinese Compact Utility Loader,
Chinese Mini Track Loader, Chinese Mini Loader, Chinese Mini Skid Steer Loader,
Chinese Compact Skid Steer Loader, China Mini Skid Steer, China Stand-on Skid
Steer, China Compact Utility Loader, China Mini Track Loader, China Mini
Loader, China Mini Skid Steer Loader, China Compact Skid Steer Loader, Mini
Skid Steer Made in China, Stand-on Skid Steer Made in China, Compact Utility
Loader Made in China, Mini Track Loader Made in China, Mini Loader Made in
China, Mini Skid Steer Loader Made in China, Compact Skid Steer Loader Made in
China, Mini Skid Steer from China, Stand-on Skid Steer from China, Compact
Utility Loader from China, Mini Track Loader from China, Mini Loader from
China, Mini Skid Steer Loader from China, Compact Skid Steer Loader from China

Minimum Order: 1 sets
