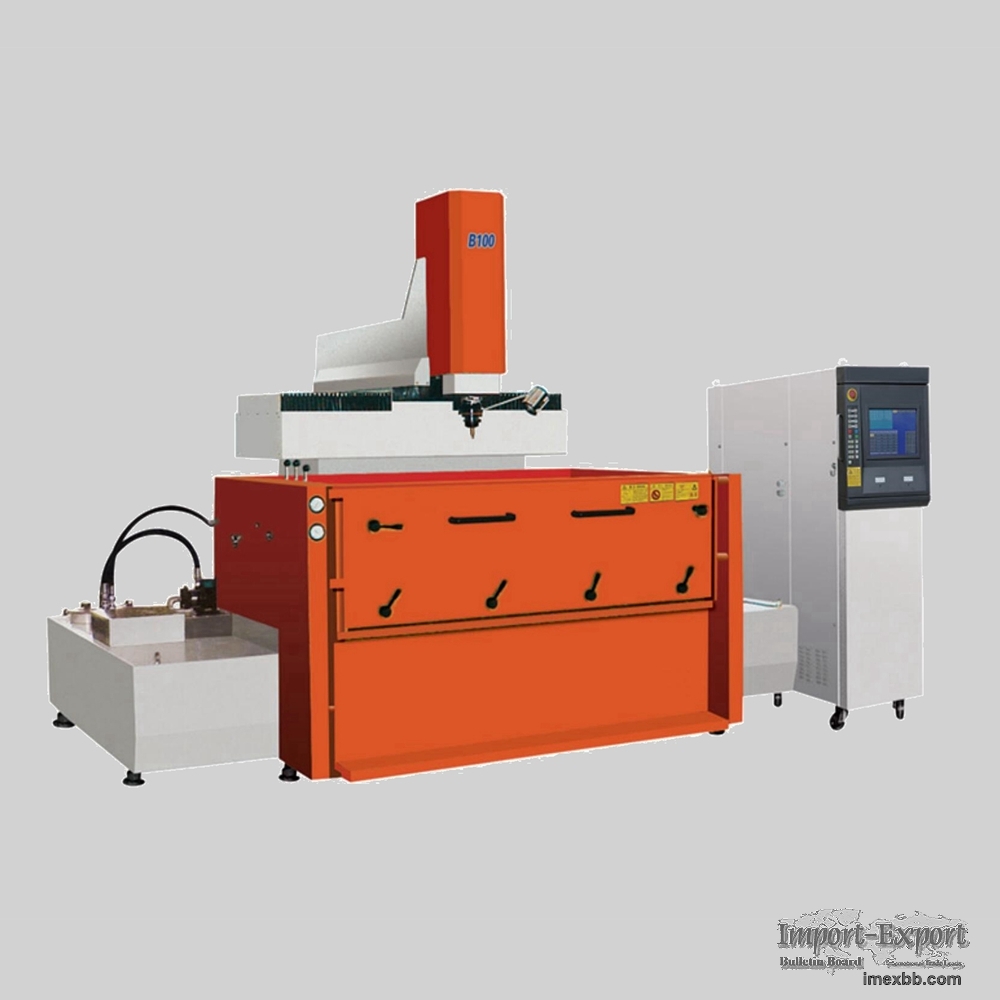

Mirror Spark EDM / CNC Die Sinking EDM Machine From China Sanxing Machinery

Sanxing Brand CNC Mirror Spark EDM Machine, can be considered as one kind of CNC
Die Sinking EDM Machine or CNC EDM Machine, is mainly used in the complex mold
cavity, especially for that not easy to polish the complex surface precision
processing. It can eliminate the manual polishing process, improve the service
performance of parts, and shorten the mold manufacturing cycle.

CNC Sinker EDM machine refers to a machine that can realize the discharge
machining or the multi-axis dynamic discharge machining. The mechanical structure
of the sinker EDM machine is firm and strong with a practical function. Sinker EDM
machine is perfect machining applied in the tooling industry for the EDM die
sinker can produce molds with high precision and smoothness. EDM die sinking
machine is wildly used in any industry which requires a precision finish. Due to
the hard property of metal, the spark erosion machine only comes out with the
electrical sparks rather than touches the metal directly. Sanxing Machinery has
various types of sinker EDM machines for you to choose.

FEATURES OF MIRROR SPARK EDM MACHINE – BM100
A. Three-Axis Linkage
B. C-Structure Design
C. Servo Motor for Three-Axis
D. Linear Guideway from PMI/ HIWIN
E. Ball Screw from PMI/ HIWIN

TECHNICAL DATA OF MIRROR SPARK EDM MACHINE – BM100
Mechanical specifications Unit BM100
Table size (length x width) mm 1250×800
X axis Travel mm 1000
Y axis Travel mm 600
Z axis Travel mm 450
The internal dimensions of processing tank mm 2000x1300x700
Max. electrode weight kg 150
Table Loading weight kg 3500
Min. Distance from electrode plate to working table mm 550
Max. Distance from electrode plate to working table mm 1000
Total input power KVA 10
Input power V 380
Max. machining current A 50
The number of control axis Three axis three linkage
MIRROR SPARK EDM MACHINE
Spec of Mirror Spark EDM Machine / CNC Die Sinker EDM Machine - Sanxing Machienry

OPTIONAL
1. Model: From B30 To BM180T
2. Magnetic Worktable Optional
3. Orbital Head Optional
4. Different Working Current Optional

DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not
damaged due to improper operation (consumables are excluded). Out of warranty
period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have
been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you
can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your
special requirement.

Minimum Order: 1 sets
