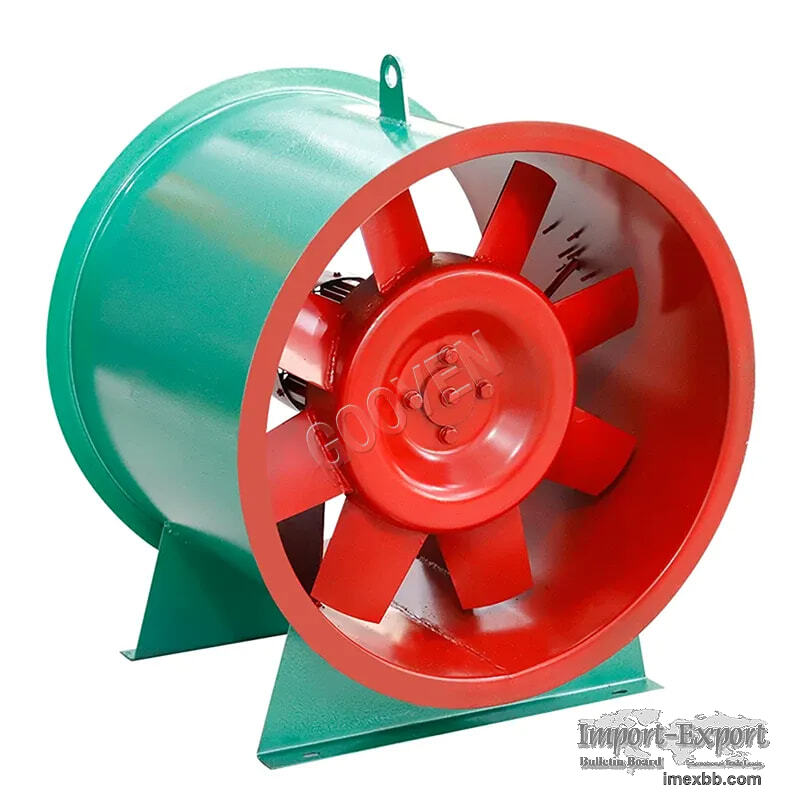

Mixed/Diagonal Flow Fans

Mixed Flow Fans – Industrial Mixed Flow & Diagonal Flow Fan Solutions
Mixed Flow Fans blend axial and centrifugal air movement characteristics,
offering superior aerodynamic performance in applications requiring wide
airflow with moderate pressure. Compared to traditional axial fans, mixed flow
fans deliver higher static pressure in a more compact footprint, making them
ideal for HVAC, tunnel ventilation, smoke extraction, and industrial process
systems.

What Are Mixed Flow Fans?
Mixed Flow Fans are hybrid ventilation systems in which air moves through the
impeller at an angle, combining axial air movement with centrifugal pressure
characteristics. Compared with traditional axial fans, mixed flow designs
provide higher pressure output while maintaining a compact installation
footprint.
This balanced airflow performance makes Mixed Flow Fans a preferred solution
for systems where space limitations, efficiency standards, and consistent
airflow are critical factors.
Diagonal Flow Fans: A Hybrid Performance Solution
Diagonal Flow Fans are a specialized subtype of mixed flow design where airflow
follows a diagonal trajectory through the impeller. This unique geometry
enhances air handling efficiency and pressure performance while maintaining
lower noise levels — critical for industrial installations demanding both
performance and quiet operation.
Diagonal Flow Fan Advantages
Diagonal Flow Fans are a specialized type of mixed flow fan in which airflow
follows a diagonal path through the impeller. This design improves aerodynamic
efficiency while reducing turbulence and noise
·   Higher pressure capability than axial fans
·   Lower noise levels compared to centrifugal fans
·   Compact housing suitable for confined installations
·   Improved airflow stability under variable operating conditions
These characteristics make the Diagonal Flow Fan an ideal choice for industrial
and commercial ventilation systems requiring both performance and acoustic
control.

Common Industrial Applications of Mixed & Diagonal Flow Fans:
·   HVAC systems in factories and warehouses
·   Smoke extraction & fire safety ventilation
·   Cooling systems for machinery and electronics
·   Tunnel and underground ventilation
·   Commercial kitchen exhaust systems
Why Choose Us as Mixed Flow Industrial Fan Suppliers
As experienced Industrial Ventilation Equipment  Suppliers, we support global
customers with reliable manufacturing capability, technical expertise, and
responsive service. Our focus is not only on supplying fans, but on delivering
complete ventilation solutions tailored to project requirements.
As leading Mixed Flow Industrial Fan Suppliers, our engineering expertise and
global supply chain support make us a trusted choice for OEM and project
partners. With rigorous testing, responsive customer support, and tailored fan
solutions, we serve industries worldwide with quality and reliability.
learn more: https://www.smokeextractionfan.com/
