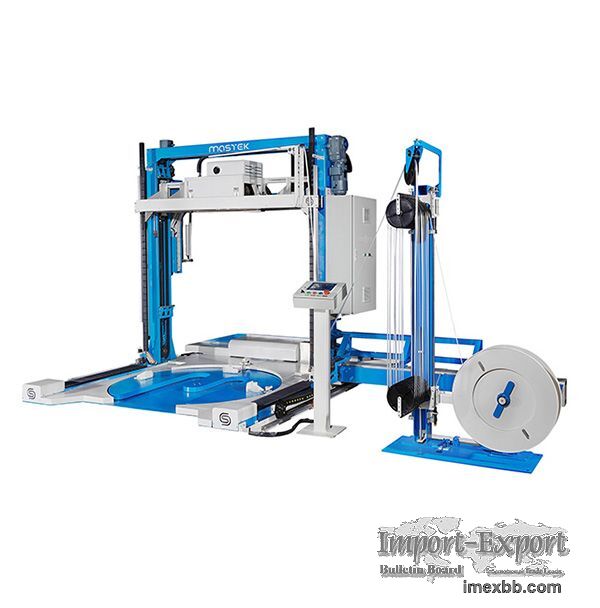

MK900 Fully Automatic Strapping & Wrapping All In One Machine

①M Shape Turntable
800KG load weight, 1650mm size, it is normally suitable for European pallet. M
shape turntable is easy for Pallet Jacks or AGV to load pallets on machines (If
the pallet size is more than 1.2 × 1.2m or the pallet weight is more than
800KG, we recommend using a 1500KG loading turntable with optional manual
pallet jack ramp to load the pallet onto the machine)
②Moving Frame
Servo Driven Frame is a standard feature on the MK900, which allows MK900 to
accommodate different pallet sizes at the same time.
Working with turntable, Patten will be :2x0   2x2   0x2
③Fully Automatic Wrapping Film Function
 Film carriage with 250% pre stretch rate, fully automatic cutting and
clamping film function, the stretching function DOES NOT require manual
operation, and the operation is safe and convenient.

Pallet Strapping & Wrapping All In One Save Labor & space
● Fully automatic strapping machine for both PET and PP. Servo drive moving
frame is suited to different pallet sizes.
● Fully automatic wrapping machine with 250% pre-stretch

SMART Operation System High efficiency
● Operation guidance (show on screen) Smart Alarm & solution find in screen
● Fully automatic cutting and clamping film
● Remote start machine

Durable parts&Multiple service Reliable Quality
● Ultrasonic Strapping Head SIEMENS Electric parts, SICK sensor...
● 3 years Warranty for Strapping Head
● IoT remote service +7x24 technical support service

High Compatibility Turntable: MK900 Pro
1800mm Turntable with maximum 1500KG load weight, maximum suitable for
1.25x1.25m pallet.
Suitable for all kinds of pallet shape (Straps Though Hole Should over 250mm
lengthx80mm high)ramp for hand pallet jack to load the pallet on machine.

HEMAX AGV System:HM01 (Base on SRC Laser SLAM)
1000KG maximum load weight, Lifting Height 174mm, fork Height 104

Laser Radar + 3D Havcam
8 Hours working time
Accurate Positioning +/- 10mm

Strapping Machine form Mastek
Looking for intelligent strapping machines and packaging automation solutions?
Mastek is your go-to destination. With a focus on designing, researching, and
manufacturing high-quality strapping machines and carton erectors, we have been
revolutionizing the back-end automated packaging industry for over 18 years.
Our Mastek MK300, MK600, and MK900 and other series of products, are renowned
in over 30 countries and regions, including Thailand, Malaysia, Canada, Mexico,
Australia, and South Korea.

MK900 TECHNICAL DATA MK900 STANDARD
FEATURES
Performance: Strapping Head Top-mounted Utrasonic SEPOII
Packing speed : Approx. 25-30 pallet/hour
(Depending on product height and width) PLC Control SIEMENS
Inverter SIEMENS
Maximum pallet size 1200mm*1200mm（EUR-pallet） Touch Screen Mastek
IoT Screen /SIEMENS
Maximum load height 500mm（standard）- 1500mm Up and down motor
SEW motor
Minimum load size 1000*800mm(W*H) Sealing head motor Servo motor
Maximum load weight 800KG（2000KG Optional） Sword moving motor
Servo motor
Tension range 500-3000N (adjustable) movable frame motor Servo motor
Straps feeding speed 2m/second Sensor SICK
Joint sealing length 30mm Turntable type 1650mm M shape
Straps System Recipe 12 Modes
PET 1208（12mm wide/0.8mm thickness） Film carriage pre strech rate
2.5
1508（15mm wide/0.8mm thickness） Cutting and clamping film
Full automatic
1908（19mm wide/0.8mm thickness） Strap tension Adjustable via
touch panel
PP 1510（15mm wide/1.0mm thickness） Sealing unit self clean system
Have
Stretch Film End of strap signal Automatic detect
10-15KG 500mm high 14-23mic 300% stretch rate
230mm diameter 76mm paper core
Strap Coil Dispenser: Certification CE
Maximum Coil size 600-760mm diameter* 150mm width Technical support
24hrs x7 days a week
Coil Inner diameter 406mm+10mm Machine Warranty One year (3
years for strapping head)
Pneumatic Data
Air consumption 2-3CFM @ 60-80 PSI Optional
Electricity: ①Turntable 2000KG load turntable with Ramp
Power consumption: 7KW ②AGV HEMAX 01
Voltage 380V /415/480V/50or 60Hz 3phase ③Top Protection sheet folding device
For 5mm Paper sheet
Machine weight 1800KG ④Top edge protector applicator 100pcs
*100mm*50/50mm*5mm (paper)
Machine size 3902*1581*2388mm ⑤Strapping head Friction type
(Only PET)
