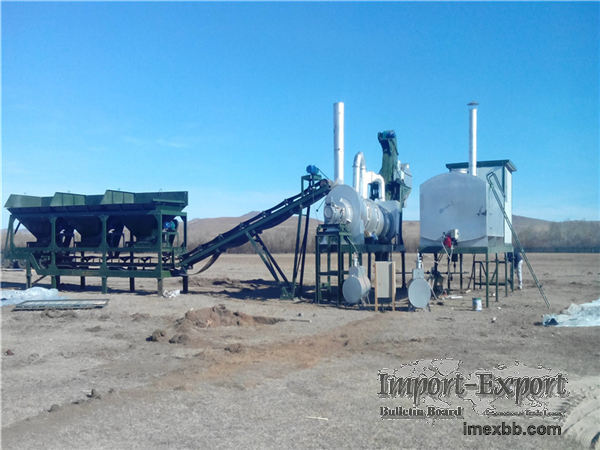

Mobile asphalt plant

Product Description
Mobile asphalt mixing plant can be categorized into two types, one is drum type
and the other is compulsory type.
For drum type, we use drying drum to dry aggregates and mix them with bitumen.
No ore powder will be used. It is usually used for small and low-level road
construction.
For compulsory type, there is mixer to mix all the materials like stones, ore
powder and bitumen. All materials will be weighed before being discharged into
mixer to ensure the accuracy of the asphalt formula. Usually, it is used for
high-standard road construction.
We now have mobile asphalt mixing plant with the capacity from 25tph to 100tph.
Welcome to contact us for details and quotations.
Specification of mobile asphalt plant
Model MDHB25 MDHB40 MDHB60 MDHB80 MDHB100
Production Capacity (T/h) 25 40 60 80 100
Mixing Type Continuous Continuous Continuous Continuous
Continuous
Dust Remove Effect (mg/Nm3) ≤100 ≤100 ≤100 ≤100 ≤100
Fuel Consumption (kg/t) (Oil) 5.5-7 5.5-7 5.5-7 5.5-7 5.5-7
Fuel Consumption (kg/t) (Coal) 10-13 10-13 10-13 10-13 10-13
Aggregate Weighing Accuracy(%) ±1.5 ±1.5 ±1.5 ±1.5 ±1.5
Bitumen Weighing Accuracy(%) ±1 ±1 ±1 ±1 ±1
Total Power (kw) 50 75 128 165 200

Click to Enlarge
