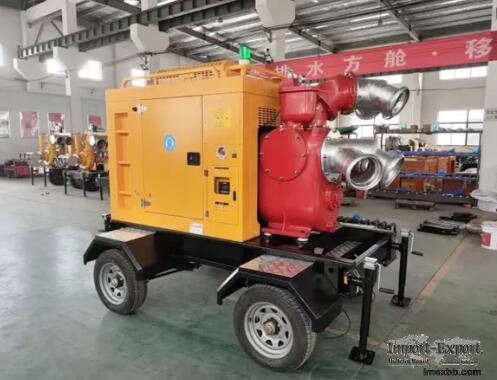

Mobile Trailer Mounted Self Priming Diesel Water Pumps

1. Flow range: 300m ³/h-3000m ³/h, pumping head range is 10m-30m.
2. Pump body material: cast iron or stainless steel material, and the inlet and
outlet of the water pump are connected by Paul's quick couplings.
3. Equipped with a vacuum assist system, there is no need to fill the pump body
with water before starting up. The pump head has a detachable cleaning port for
easy maintenance and cleaning.
4. The structure of the cabin is reasonable, made of high-quality galvanized
steel plates with a thickness of not less than 2.0mm. Each steel plate has
undergone sandblasting, rust prevention, and anti-corrosion treatment, and is
coated with 300 degree high-temperature spray paint technology. The cabin is
equipped with doors on both sides to meet the observation, operation,
maintenance, and repair needs of the genset control system.
5.According to the size of the Mobile Trailer Mounted Self Priming Diesel Water
Pumps flow supporting engine, can be customized two-wheeled or four-wheeled
trailer, trailer tow bar can be applied to a variety of heights of the tractor,
steering without a dead angle, easy to move, with the pull with the use of a
traveling inertia braking system, travel speed: 20km/h-60km/h.
6. The unit adopts an intelligent controller that displays parameters of the
diesel engine, such as water temperature, oil pressure, oil temperature, speed,
etc., and sends alarm commands when faults are detected (such as high oil
temperature, low oil pressure, emergency stop alarm, etc.). It is equipped with
an (emergency stop) button and has overload protection and alarm stop functions
for the entire genset. The operation is simple and reliable.
