Modbus RTU to BACnet/IP gateway for Dynamic building Environment Monitoring

Model NO.
BA100
Information content
Data
Certification
CE, ISO, RoHS, FCC
Condition
New
communication method
4G
OpenVPN
support
GPS
suppo , rt
RS485/RS232
support
Ethernet
suppor , t
Other Gateway Models
Price Contacts
Functions
routing functions cascading switch
configuration
support remote configuration
Power Input
DC 9 to 36V
Installation Method
DIN Rail
Warranty
1 Years
Ethernet Port
1*WAN, 1*LAN
Customized
Customized
Uplink Protocol
BACnet MS/TP, BACnet/IP
Application
Samrt Building, BMS, Bas, HVAC
Transport Package
Box
Specification
110x83x30mm
, Trademark
BLIIOT
Origin
China
HS Code
8517629900
Production Capacity
9999/Month

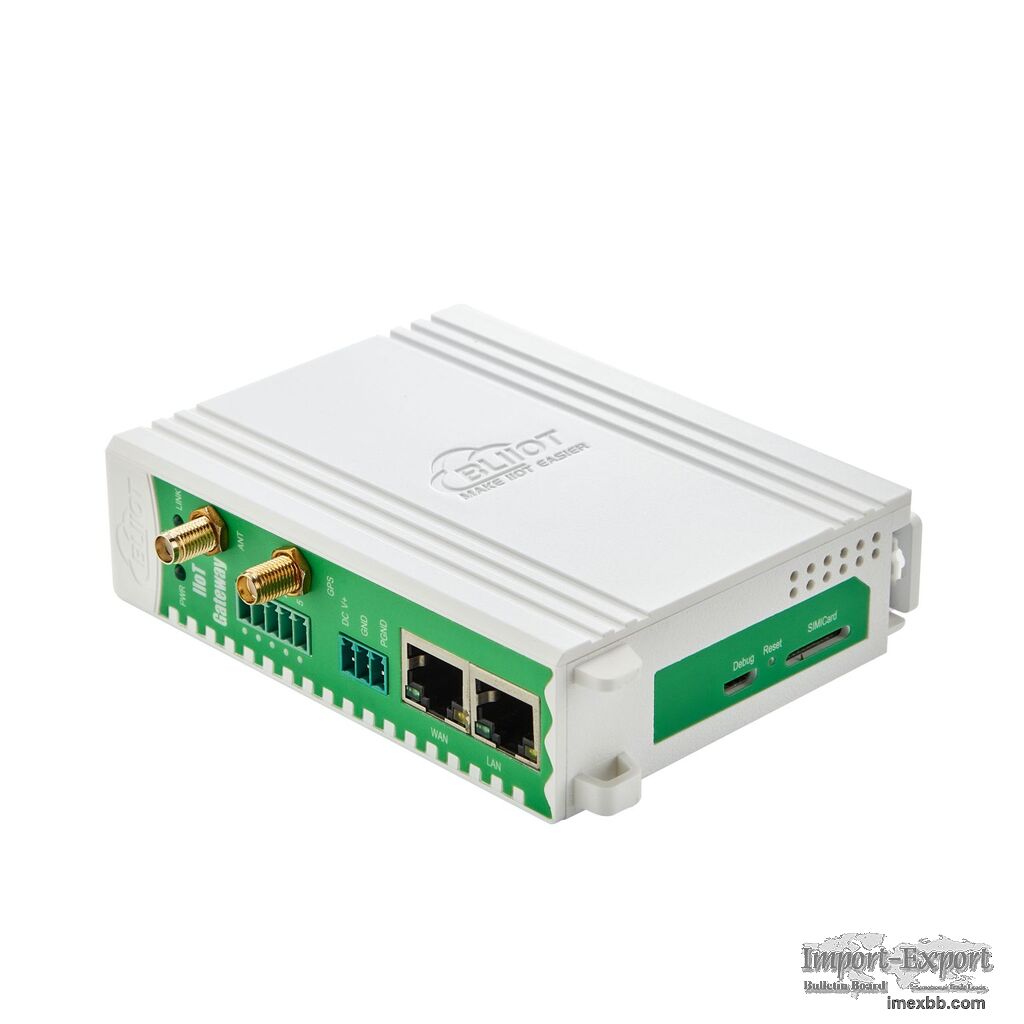

Modbus RTU, Modbus TCP to BACnet/IP Protocol Gateways BA100
Item No.: BA100

Modbus RTU to BACnet/IP gateway, BA100 series gateway, which not only makes the
integration between end devices and DDC software easier and more stable, but
also provides real-time device and status monitoring as well as proactive alarm
notification, realizing more intelligent data acquisition and equipment
notification.
Basic Version: 2 Serial Ports: BA100
P Version: 6 Serial Ports: BA100P

BA100 is a Modbus RTU, Modbus TCP protocol converted to BACnet/IP protocol
gateway, supports up to 10 devices, 512 data points acquisition.

It adopts embedded ARM MCU and is developed based on Linux OS system. It
provides 2 RS232/RS485 optional serial inputs, 1 power input, 2 Ethernet ports
(WAN port and LAN port) and 2 USB ports. Access to the Internet by WiFi or
Ethernet is characterized by fast rate and low latency.
Support OpenVPN function.
Support routing function and cascade switch data acquisition, convenient to
collect more industrial equipment data, software function is perfect, covering
most of the conventional application scenarios.

Integration of barium rhenium technology adhering to the humanized
configuration interface, as well as remote configuration, remote upgrade
firmware and other functions, the user only through a simple setup .
Adopt fastening structure, with anti-reverse connection protection power supply
design, using its own patented rail snap technology, support for standard DIN35
rail mounting and wall mounting.

Minimum Order: 2 pieces
