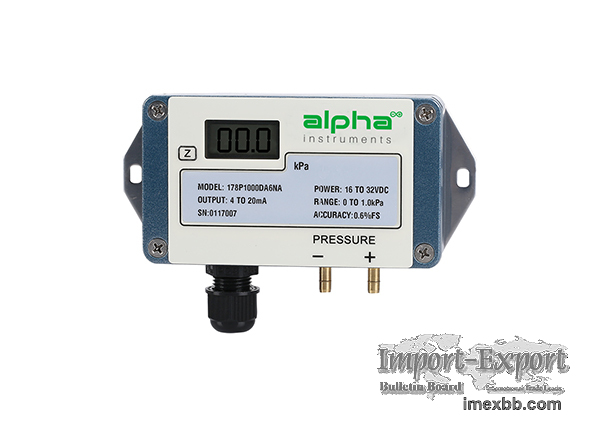

Model 178 LCD Display Differential Pressure Transmitter

The Model 178 Series variable pressure sensor are low range differential
pressure transmitters. Each unit features a push-activated ZERO function and an
associated LCD display. With a convenient push button, the zero calibration can
be performed without any additional equipment. It is with NEMA 4 (IP-65) rated
aluminum enclosures, they are very rugged and very reliable.

The Model 178 Series surface mount pressure transducer/sensor is available for
full scale pressure range from 0 to 0.1″WC till 0 to 100″WC. Both
unidirectional and bidirectional pressure ranges are offered. The output of the
Model 178 Pressure Transducer is available in two versions: 0 to 5VDC and 0 to
10VDC, where 0VDC is true zero without offset. The output of Model 178 Pressure
Transmitters is 4 to 20 mA. All units are temperature compensated. The accuracy
can be 0.6%, 0.4% or 0.25% at room temperature. Bidirectional pressure
transducer available on alphainstruments.com, feel free to contact!

The patented variable capacitance pressure sensor is constructed by stainless
steel and glass, no glue or other organics. That provides excellent
performance, corrosion resistance and long-term stability.

Key Features of Alpha 178 variable capacitance pressure sensor:
3-1/2 Digit LCD Display
Push Button Zero Calibration
Up to 15 PSI Proof Pressure on all Ranges
Miswiring Full Protection
Rugged Aluminum Housing Rated NEMA 4/IP65
Specification of Alpha 178 surface mount pressure sensor:
Accuracy: ±0.25%, ±0.40% or ±0.60% of span
Differential Pressure Ranges:
Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.
Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.
NEMA 4/IP65; Die-cast aluminum
Mounting: surface mount
Output signal: current or voltage
Process Applications of Alpha 178 surface mount pressure transducer:
HVAC and VAV Control
Clean Room and Isolation Rooms
Duct Static Pressure Measurement
Draft Control and Fume Hood Control
Furnace Air Flow Control
Power Plant Air Flow Monitor and Control

Alpha is a professional pressure transducers suppliers, we provide low pressure
sensor, differential pressure transducer, low pressure transmitter, low
differential pressure transmitter and etc. Want to know differential pressure
transmitter price or more? Please contact us.

Minimum Order: 1 sets
