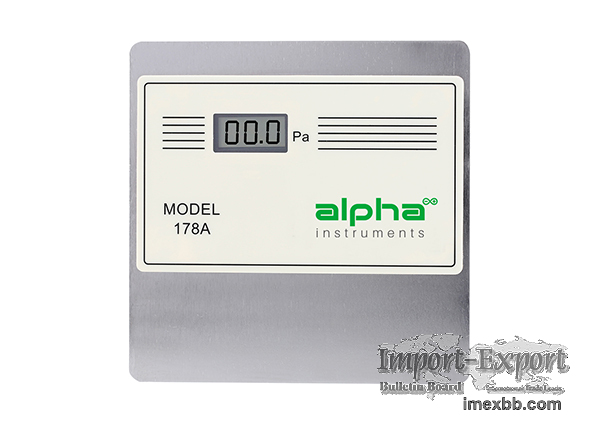

Model 178A Front Panel Mounting Differential Pressure Transmitter

The model 178A Series pressure monitors are low-range differential pressure
transmitters. Each unit features a push-activated ZERO function and an
associated LCD display. With a convenient push button, the zero calibration can
be performed without any additional equipment. It significantly reduces time
and cost for users.

The 178A series pressure differential monitor has a SS304 front panel and an
IP65/NEMA 4 rated aluminum die casting enclosure to withstand environmental
effects. The pressure ranges from 0.1″WC to 100″WC, unidirectional or
bidirectional. The output is 2-wire 4 to 20mA, fully protected against short
circuiting and incorrect wiring.

All units are temperature compensated. 0.6%, 0.4% and 0.25% accuracies are
available. The patented stainless steel diaphragm sensor provides good
corrosion resistance,excellent repeatability and long term stability.

Key Features of Alpha 178A pressure monitor:
SS304 Front Panel Mounting
3-1/2 Digit LCD Display
Push Button Zero Calibration
Up to 15 PSI Proof Pressure on all Ranges
Miswiring Full Protection
Rugged Aluminum Housing Rated NEMA 4/IP65
Specification of Alpha 178A pressure differential monitor:
Accuracy: ±0.25%, ±0.40% or ±0.60% of span
Differential Pressure Ranges:
Unidirectional: 0.10 in.W.C. to 100.00 in.W.C.
Bidirectional: ±0.10 in.W.C. to ±50.00 in.W.C.
NEMA 4/IP65; Die-cast aluminum
Mounting: surface mount
Output signal: current or voltage
Process Applications of Alpha 178A pressure sensor:
HVAC and VAV Control
Clean Room and Isolation Rooms
Duct Static Pressure Measurement
Draft Control and Fume Hood Control
Furnace Air Flow Control
Power Plant Air Flow Monitor and Control

Alpha is a professional pressure transducer supplier, we provide low pressure
sensor, surface mount pressure sensor, low pressure transmitter, small pressure
transducers and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
