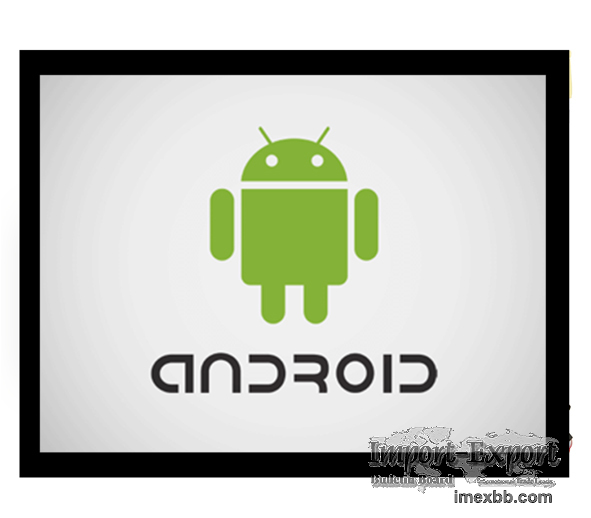

MODEL: P10768MS150P_T01 15.0 Inches, 1024xRGBx768, 16.7M Colors, Android LC

Proculus Technologies is the leading TFT display supplier and TFT display
manufacturer in the industry of embedded devices, focusing on All-in-one TFT
LCDs including UARTs and Android Solutions.

P10768MS150P_T01 is an industrial level Android LCM based on Rockchip RK3288
ARM. It is equipped with Quad-core Coretex-A17, supports most decoding
solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions under 1080p@60fps
and many other great features of Rockchip RK3288. Meanwhile, with good jpeg
picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1
OpenVG1.1.

RK3288 has high-performance external memory interface (DDR3/DDR3L/LPDDR2)
capable of sustaining demanding memory bandwidths, also provides a complete set
of peripheral interface to support very flexible applications.

Specifications of 15 Inch Android LCD module
Core Board
CPU 1.8GHz Quad-core A17 ARM
RAM 2GB DDR3
eMMC 8GB
GPU Mali-T764 MP4
Power Management ACT8846 PMU

15 inch tft display System Version
Android Android 5.1/8.1
Ubuntu Ubuntu 13.09 (Default system is Android. Need to refresh firmware to
choose Ubuntu. Apps need to be developed separately.)

15 inch tft Display
Color 16.7M (16777216) colors, 24-bit color 8R8G8B.
Active Area (A.A.) 304.10 mm(W)×228.10 mm(H), 1024×768.
View Area (V.A.) 307.40 mm(W)×231.30mm(H), 1024×768.
Resolution 1024×768
Backlight LED
Brightness 300nit

Optical Specifications
Item Symbol Condition Min. Typ. Max. Unit
Viewing Angle
(CR≧10) θL Φ=180° (9 o’clock) 85 89 — Degree
θR Φ=0° (3 o’clock) 85 89 —
θT Φ=90° (12 o’clock) 85 89 —
θB Φ=270° (6 o’clock) 85 89 —

Voltage & Current
Item Condition Min. Typ. Max. Unit
Power Voltage 6 12 18 V
Operation Current — — 400 — mA
Power Supply 12V 3A DC (Recommended).

Reliability Test
Item Condition Min. Typ. Max. Unit
Working Temperature 60%RH at 12V voltage -30 25 70 ℃
Storage Temperature — -30 25 85 ℃
Working Humidity 25℃ 10% 60% 90% RH
Protection Paint — — None — —

Interface
Item Condition Min. Typ. Max. Unit
Baud Rate Standard 1200 115200 115200 bps
User Defin 1200 — 115200 bps
Serial Mode Serial Port*5 (4*RS232/TTL, 1*RS485).
User Interface Standard serial communication protocol. 4Pin_2.54mm socket.
USB USB DEBUG*1. USB HOST*8.
Ethernet Support 10m/100m Ethernet.
Wi-Fi Support 802.11b/g/n Wi-Fi wireless network.
4G LTE Module 4G LTE Module/GPS.

Peripherals
Microphone Audio input interface.
Loudspeaker 2-channel, 4Ω/3W loudspeaker.
HDMI HDMI output interface.
IIC Yes
TF card Yes

Interface Description of 15 tft monitor Android LCD module
Num. Interface Name Description
J0 Power 12V2A power supply
J1 SPK_R Right channel audio output interface
J2 SPK_L Left channel audio output interface
J3 MIC Audio input interface
J4 UART0 Device name: ttyS0. Pin definition: GND, RX, TX, 5V
J5 UART1 Device name: ttyS1. Pin definition: GND, RX, TX, 5V
J6 UART3 Device name: ttyS3. Pin definition: GND, RX, TX, 5V
（choose one from J6 and J8)
J7 UART4 Device name: ttyS4. Pin definition: GND, RX, TX, 5V
J8 RS485 Device name: ttyS0. Pin definition: 5V, A, B, GND/Same as J6
（choose one from J6 and J8)
J9 RJ45 interface Support 10M/100M network
J10 Wireless Network Support IEEE802.11b/g/n network. Support
Wireless & Bluetooth 2-in-1
J11 SIM card Nano-SIM supported
J12 MINI PCIE 4G 4G LTE Module/GPS
J13 Debug interface not open temporarily
J14 USB_HOST1 Horizontal USB2.0. Support USB Peripherals
J15 USB_HOST2 Horizontal USB2.0. Support USB Peripherals
J16 USB_HOST3 Horizontal USB2.0. Support USB Peripherals
J17 USB_HOST1 Vertical 4P2.54mm. Support USB Peripherals
J18 USB_HOST2 Vertical 4P2.54mm. Support USB Peripherals
J19 USB_HOST3 Vertical 4P2.54mm. Support USB Peripherals
J20 USB_Micro OTG /App debugging/ Firmware upgrade interface
J21 HDMI HDMI output interface
J22 Buzzer
J23 Recovery Short-circuit to enter firmware burning mode
J24 RTC Supply system RTC
J25 TF Card
J26 Wake Up
J27 User interface Pin Definition: 12V, 12V, GND, GND, ttyS0-RX,  ttyS0-
TX,  ttyS1-RX, ttyS1-TX

If you want to know 15 inch tft monitor price list, please contact us.

Minimum Order: 1 bags
