MODEL: P80600V104I_T30 10.4 Inches, 800xRGBx600, 65K Colors


Proculus Technologies is the leading TFT display supplier and TFT display
manufacturer in the industry of embedded devices, focusing on All-in-one TFT
LCDs including UARTs and Android Solutions.

Features of 10.4 Inch LCD Module
Support wide range of power supply:Default is 6~35V, use jumper to choose
4.5~5.5V;
Support RS232/TTL/CMOS, the max baud rate is 115200bps;
Support audio and video;
Support hardware JPG decoding which makes storage more efficient and 10.4
inch lcd display quicker;
Support offline batch download through USB Flash Drive, which improves
download efficiency and reduce requirements for operators;
Support backlight brightness adjustment and automatic standby screen saver
function;
Support multi-language font library, picture, TWO-DIMENSIONAL code display;
Support number and English input, customizable keyboard interface;
Support 90 degrees, 180 degrees, 270 degrees screen rotation, adjustable
visual angle;
Easy-to-use UnicView GUIs Development, no coding skills required;
Instant operation when power on without system load time;
Excellent electromagnetic compatibility characteristics.

Specifications of 10.4 Inch 800*600 LCD Module
Modification Record
Date Content
2019/04/24 First release
2020/09/18 ESD reliability testing has been added

10.4 lcd Display
Color 65K (65536) colors,16 bit color 5R6G5B
Visual Angle L/R/U/D 70°/70°/50°/70°
Resolution 800*600,90° rotated display (600*800)
Backlight /Lifecycle/Brightness LED/20,000 HOURS/ 350 cd/m²/(100 level
adjustment)
Working Temperature -20~+70℃/-30~+80℃

10.4 lcd monitor
Item Condition Min. Typ. Max. Unit
Power Voltage 6 12 35 V
Operation Current VIN = 12V, Backlight on — 360 — mA
VIN = 12V, Backlight off — 120 —
Note:Short-circuit J25 to choose Power Input as 5V (4.5V~5.5V)

Interface
Item Condition Min. Typ. Max. Unit
Baud Rate Standard 1200 — 115200 bps
Interface RS232(Short-circuit J17/J18 to choose TTL/CMOS)
Data Format 1 byte for initial, 8 bytes for data, invalid bytes for
checksum, 1 byte for end.

Peripherals
Buzzer YES
RTC YES
Audio Port Support *.MP3 format. No time limit for single file.
Theoretically 4096 files at maximum. Loudspeaker: 8Ω2W.
USB YES. For downloading offline or data copy.
Memory 128M(support *.jpg files, maximum 65536 files theoretically), extended
to 1G at maximum.

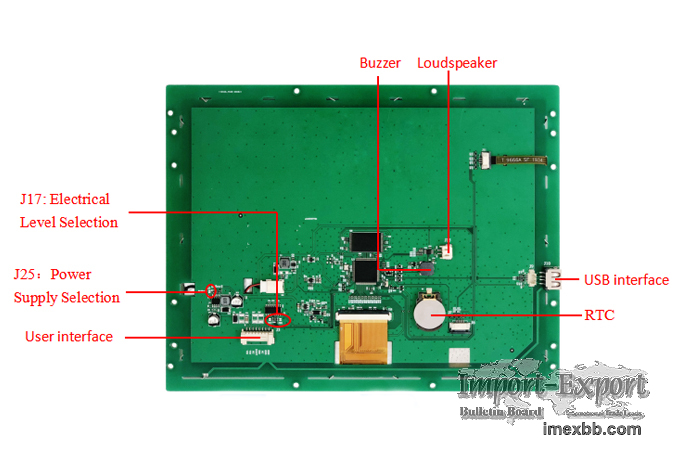

Pin definition
J3 Pin Num. Pin Name Remarks J3 Pin Num. Pin Name Remarks
1 GND — 5 DOUT Serial output
2 GND — 6 NC Undefined
3 NC Undefined 7 VIN Power input
4 DIN Serial input 8 VIN Power input

Packaging and physical dimensions
Parameter Data
Net weight of single piece 575g (no touch)/696g(resistive touch
screen)/728g (capacitive touch screen)
Weight of whole case 12.7kg (no touch)/15.2kg(resistive touch screen)/15.8kg
(capacitive touch screen)
Packing box size 500(mm)×335(mm)×245(mm)
Packing specification 20 pieces /box

Immunity Test of 10.4 Inch 800*600 LCD Module
ESD test for electrostatic discharge
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: Carry out contact and air discharge on the periphery of the iron
frame and the display area of the serial port screen in turn, and observe
whether the screen has abnormal working phenomena such as reset restart, black
screen, white screen, communication interruption, and other abnormalities.

Discharge type Discharge value Result

Contact discharge ±6KV Working properly.
Air discharge ±15KV Working properly.
Note: All tests are conducted when the products are exposed. In the actual use
process, when the serial port screen is assembled on the user equipment, the
screen and the equipment are kept well-grounded, the ESD performance of the
whole machine will be better.

EFT Test
Test ambient temperature: 25℃
Test ambient humidity: 50%
Test process: The power supply line supplies power to the screen through the
power supply after the pulse Group generator is coupled with the pulse Group;
the serial port signal line carries out serial port communication with the
screen through the signal after the pulse Group generator is coupled with the
pulse Group; and the screen is observed whether abnormal working phenomena such
as reset restart, black screen, white screen, abnormal communication, and
communication interruption.
Test item Test standard Result
Voltage Frequency
Power cord 4 KV 100 KHz Working properly.
Signal line 2 KV 100 KHz Working properly.

Interface Description of 10.4 Inch 800*600 LCD Module
Interface Name Description
Loudspeaker 8Ω/3W, PH2.0-2 socket.
USB interface For downloading offline or data copy. Cannot be used for power
supply.
Please refer to UnicView Connection Guide.
User interface Used for power supply serial communication.
Standard serial communication protocol. 8 pin_2.0mm socket.
Note: The products of our company may always be updated, and are subject to
change without notice unless modification of key structure process or major
adjustment of layout is involved. The real products shall prevail.
