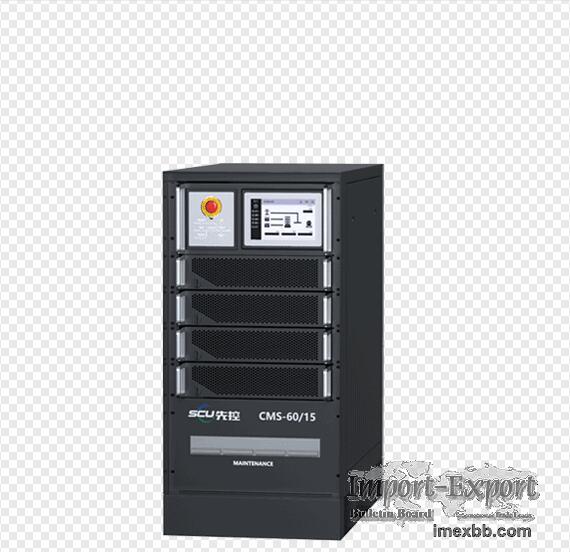

Modular UPS Systems (Li-ion Batt)

SCU, a professional modular ups system supplier in China, can provide high-
quality modular type ups at a competitive price. Our modular UPS systems
provide a good solution of modular uninterruptible power supply protection for
IT data security.

CMS series (30-900KVA)
Modular UPS Systems Advantages
As a pioneer and leader of the modular UPS manufacturers in China, SCU-produced
modular UPS systems or li-ion UPS modular technology is your great choice. We
offer our business partners the most flexible and competitive modular UPS
solution, with power modules 6kVA, 15kW, 30kW, 50kW UPS and 75kW, and modular
UPS systems 12~30kVA, 60kW~900kW, then 4 units parallel up to 3.6MW, and
available with modular lithium battery solutions.
Being a professional UPS supplier, SCU provides modular UPS systems which has
been protecting clients’ business for over 20 years from small IT networks to
1MW-100MW data centers.

Superior Reliability
Modular UPS power module has multi-level decentralized control technology;
Flexible redundancy： N+1,N+X, 2N
Physical isolation of cold and hot air ducts;
Support lithium ion ups battery access.

Excellent Energy Saving
96.5% efficiency at online double conversion mode;
99% efficiency at IECO mode;
Output PF 1, high load capacity;
Module sleep function ensures the modular best industrial ups system always
works in the best efficiency state.

High Availability
Generator Compatible;
UPS modular type, standardized design;

The modular UPS systems are compatible with solar battery solutions;
Pay as grow, reduce the total cost of ownership (TCO)
Hot swap, quick repair and expansion;
Small footprint, high power density.
30-120kva Modular UPS Specifications

Model / capacity CMS-30/15(30kVA); CMS-60/15(60kVA); CMS-120/15(120
KVA);
Power module Model / capacity CM15；15kVA/15kW
Mains input Input mode 3Ph+N+PE
Rated input voltage 380V/220V AC、400V/230V   AC、415V/240V AC
Input frequency 50Hz±10%、60Hz±10%
Input PF ≥ 0.99
DC input Rated input voltage ±240V DC
Input voltage range ±160V~±330V
AC output Output PF 1
Output voltage 380V/220V AC、400V/230V   AC、415V/240V AC
Overload Operate 10mins with 125% load
Efficiency ≥96%
Communication function Modbus、SNMP、dry contact

We can offer kinds of ups power supply for sale for sale, if you have needs,
please contact us.
