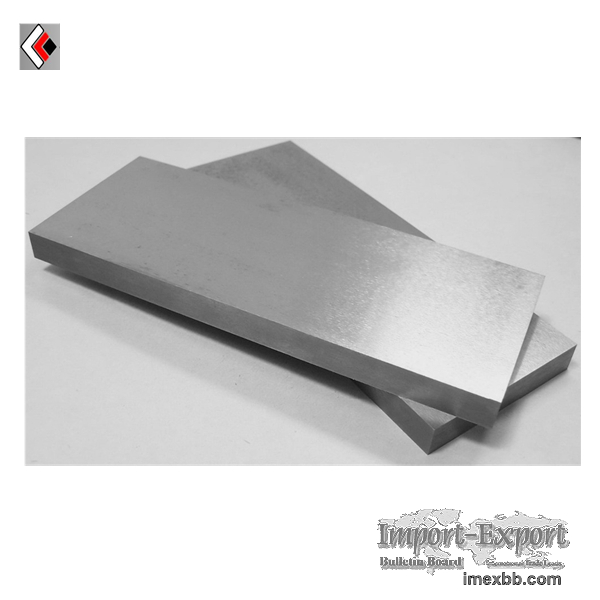

Molybdenum plate

Description:
1. Product name: Molybdenum plate
2. Standard: ASTM B386 or as required
3. Material: Mo >99.95%
4. Density: >10.2g/cc
5. Tensile strength: 610MPa
6. Elongation: > =10%
7. Using temperature: 1800℃, max temperature: 2310℃
Application:
Molybdenum plate is used for making electric light source parts, components of
electric vacuum and electric power semiconductor. It is also used for producing
molybdenum boats, heat shield and heat bodies in high temperature furnace. It
is widely used in furnace construction mould and parts, electronic components
manufacturing and semiconductor industry. In vacuum furnace and high
temperature furnace and heat preservation material plate electrode, etc.
Specification:
Specification: (0.2-90) mm*max 760mm*max10m
We produce high quality molybdenum sheet as one of our hot product. We offer
3,000-5,000 kg molybdenum sheets per month and small order is also acceptable.
Surface Condition:
Surface can be supplied in a shiny, matte, satin, or as-rolled condition;
dependent upon thickness and width parameters.
Heat treatment:
Molybdenum flat products are rolled and annealed to provide the optimum
condition for the desired end use.

Length(mm) Tolerance(mm)
<6 ±0.1
6-30 ±0.2
30-120 ±0.3
120-400 ±0.5
400-1000 ±0.8

Composition:
Brand Mo-1
Mo (%) 99.95
Other
Element
Content (%) ≤ Pb —
Bi —
Sn —
Sd —
Cd —
Fe 0.005
Ni 0.002
Al 0.002
Si 0.003
Ca 0.002
Mg 0.001
P 0.001
C 0.005
O 0.003
N 0.001

Minimum Order: 1 kilograms
