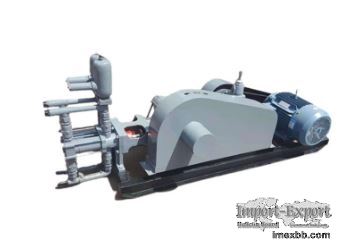

Movable Cement Grouting Machine Manual Cement Grout Pump Speed Regulation

Speed Regulation Movable Cement Grouting Machine Manual Flow Stability

Cement Grouting Machine Manual


Features of Cement Grouting Machine Manual:
1. Maintenance downtime:
When the grouting pump is not used for a short or long term, the pump head
should be disassembled, cleaned and brushed with antirust liquid or grease
before reassembly for later use.
2. Disassembly and installation method:
Remove the four fastening bolts connected with the pump head and the cylinder,
and remove the material cylinder and the inlet and outlet of the slurry.
Remove the connecting bolts between the inlet and outlet of the slurry and the
pump head respectively, and take out the steel ball, sealing gasket and the "O"
rubber ring for end face sealing.
Clean up the removed parts in time, and install them in reverse according to
the above method after rust-proof treatment. Please pay attention not to damage
the seals when disassembling.


Model SYB
Cylinder diameter 80mm
Motor power 11kw
Grouting capacity 27-100 L/MIN
Outlet pressure 5-8Mpa
Outlet diameter 19mm
Inlet diameter 25mm
Cylinder number 2
Particle diameter size ≤5mm
Suction Height 2.5m
Weight 490kg
