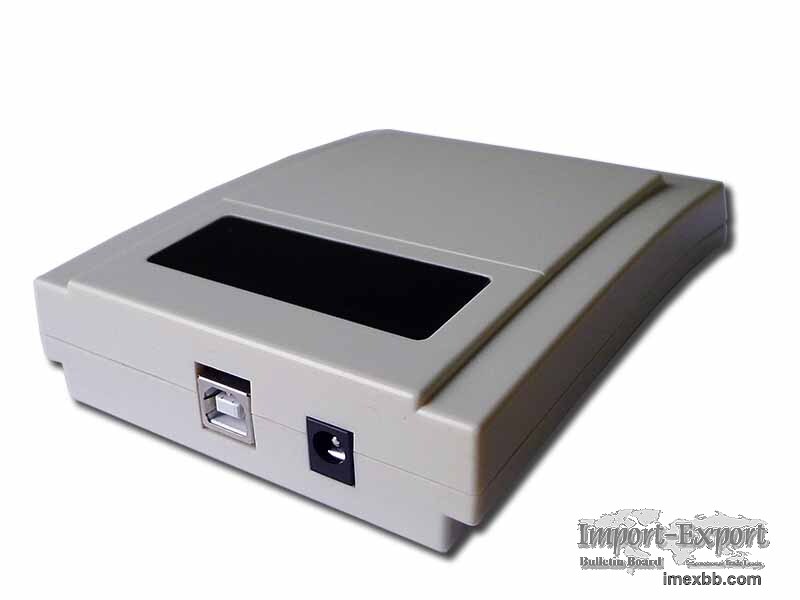

MR600 (Master Reader Classic with LED digital display, USB bridge)

Overview
MR600 series contactless smart reader is the desktop reader bases on NXP PCD or
compatible PCD. The reader inlays LED which is with 8 bits LED displayer. The
reader fully supports the IC card according to ISO14443A, ISO14443B, ISO15693
and ISO7816(T=0 & T=1); Various contactless IC card under international
standard. The reader embeds SAM card slot. We do the optimization for
application of domestic card system, so it can fully terms SAM card according
to ISO7816 (9600bps & 38400bps).
Main Characteristics
• 8 digits LED displayer
• Full function PC software
• support many kind of card/tag, just like a development tool
Technical parameters
• PCD: NXP MF RC500, MF RC531, CL RC632, SL RC400
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 80mm (MIFARE One, typical)
• SAM card slot: 1 slot, terms ISO7816 (T=0, 9600bps&38400bps)
• Interface: USB (build in CP2102 USB to RS232 bridge)
• Baud rate: 9600 ~ 115200 bps
• Power supply: DC5V ± 10%
• Power consumption: 1.5W
• Dimension: 141mm * 100mm * 31mm
• Weight: about 150g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: TransWin
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces
