MR790 (Compatible USB PCSC Interface)

Overview
MR790 series desktop contactless IC card reader/writer is base on NXP series RF
chip with high performance MCU. The communication is according to USB PC/SC
standard. The reader fully supports the IC card according to ISO14443 and
ISO15693 standard, especially completely supports ISO14443-4 contactless CPU
card. The reader builds in 3 SAM slots, and fully supports SAM according to
ISO7816. It has high speed MCU and advantage firmware providing very high card
process speed. The RF interface and protocol process are with EMV2010 LEVEL 1
certification ability.
Main Characteristics
• Compatible USB PC/SC interface
• High speed MCU and advantage firmware provide very high card process speed
• RF interface and protocol process with EMV2010 LEVEL 1 certification ability
• support many kind of card/tag
Technical parameters
• PCD: NXP MF RC500, MF RC531, CL RC632, SL RC400
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• SAM card slot: 3 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps)
• Display: 1 tri-color LED
• Buzzer: Build in
• Interface: USB PC/SC compatible
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 123mm * 88mm * 25mm
• Weight: about 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: PTransWin
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces

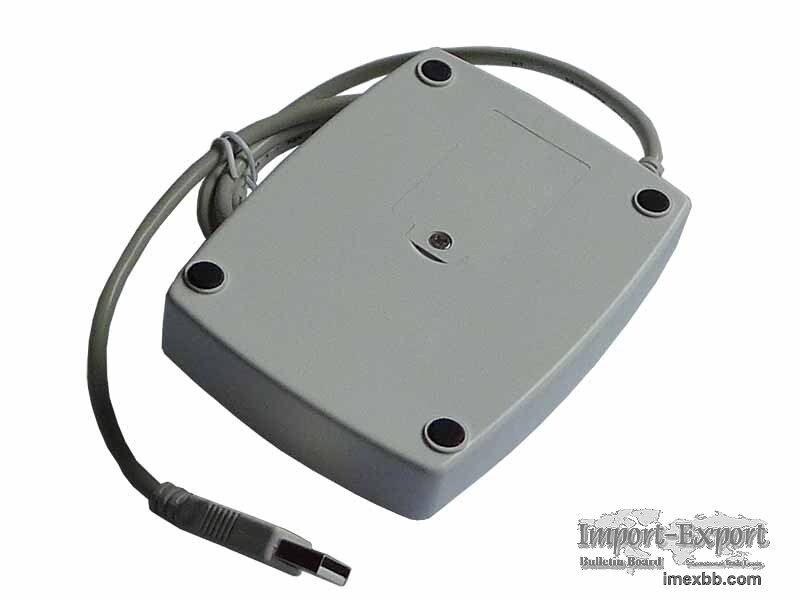

MR790  (Compatible USB PCSC Interface)
