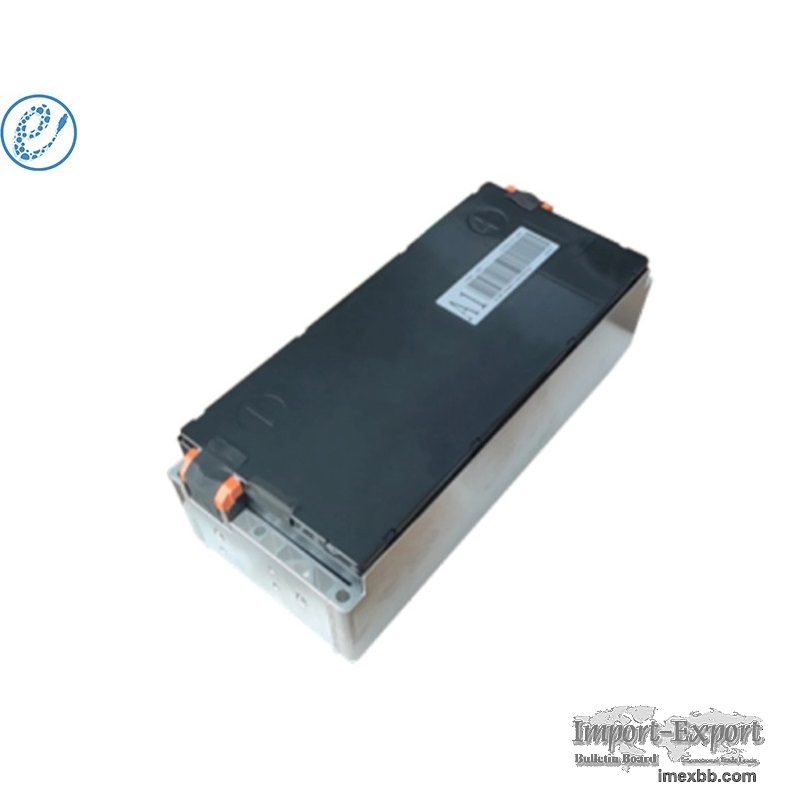

MS0903-22.2V102A-(102AH1P6S) NCM102Ah 1P6S Lithium Ion Battery Module

This NCM102Ah 1P6S lithium battery charging module is a high-performance
battery designed for extended life and reliable performance. It features
advanced safety features and a long cycle life. It is ideal for use in electric
bikes, scooters, power tools and other electronic devices. These lithium
battery of NCM module are lightweight, compact and environmentally friendly.

Specification of MS0903-22.2V102A-(102AH1P6S) NCM102Ah 1P6S Lithium Ion Battery
Module

No. Items EP-NCM102Ah STANDARD MODULE Note
MS0903-22.2V102A
102Ah1P6S
1 Nominal voltage(V) 22.2 25±2℃, 1/3C
2 Operating voltage(V) min 16.8（55℃≥T＞0℃）
15（0℃≥T＞-20℃）
12.6（-20℃≥T＞-30℃）
3 max 25.8
4 Nominal capacity(Ah) 102 25±2℃, 1/3C
5 Nominal energy (KWh ) 2.2644 25±2℃, 1/3C
6 Group mode 1P6S
7 Module weight (Kg) 11.2±0.3
8 Maximum continuous charge current (A) 102
9 Maximum short pulse charge current (≤10s) 204
10 Maximum continuous discharge current (A) 102
11 Maximum short pulse discharge current (≤10s) 306
12 SOC operating range (%) 10-90
13 Insulation requirements(MΩ) ≥200 1000V DC. High voltage output
to battery module shell, at the normal temperature, and humidity
14 Module cooling method Natural cooling
15 Module heating method No
16 Shipping capacity (SOC) ~30% SOC is consistency in the same batch
17 Shipping consistency (mv) ＜20 the voltage difference between
cells of module<20mV
18 Coulomb efficiency ≥95%
19 Module self-discharge ≤3% 25±2℃，50%SOC
20 Dimension L (mm) 355
Dimension B (mm) 151.5
Dimension H (mm) 108.5

If you want to know more kinds of eco power pack battery, please visit our
