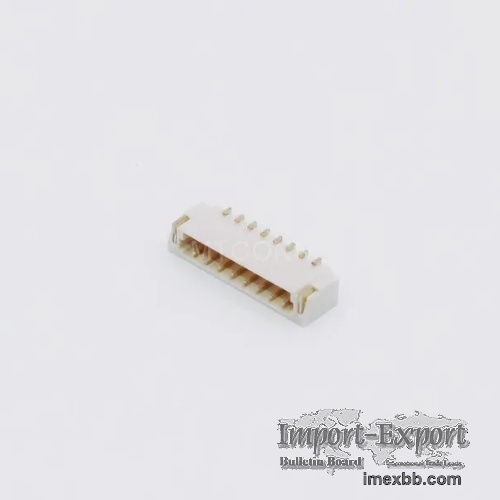

MTWF82-108GWN-02A25 8Pin PH0.8mm Wafer Connector

This 0.8mm 90° SMT wafer connector features a high-precision LCP insulator (UL
94V-0 flame-retardant) and phosphor bronze gold-plated terminals, designed for
high-density PCB board-end connections. Its right-angle surface-mount (90°
SMT) structure and compact 0.8mm pitch optimize space-constrained device
layouts, making it ideal for consumer electronics, industrial controls, and
portable devices.
Wafer connectors Features
High-Density Design: Supports 2-20Pin configurations with 0.8mm pitch for
narrow-border PCB layouts.
Reliable Contact: Gold-plated phosphor bronze terminals ensure ≤20mΩ contact
resistance and ≥5,000 mating cycles.
Environmental Resistance: Operating temperature range of -25℃ to +85℃; UL
94V-0 flame-retardant LCP material.
Automation-Friendly: SMT-compatible for high-speed pick-and-place production.
