multi-arc ion plating coating machine for decorative films of various color

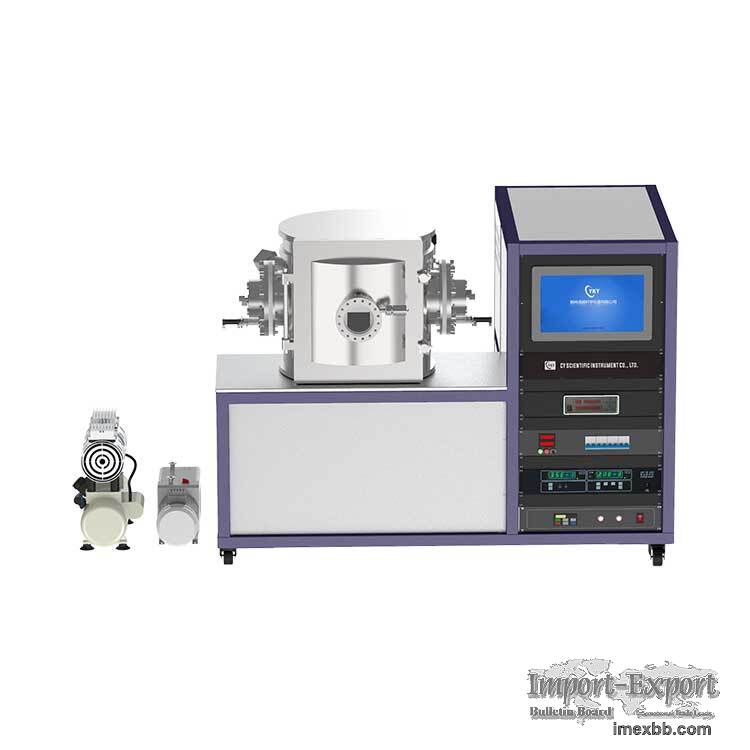

Multi-Arc Ion Plating CY-MIOP400S-2TA
This equipment is multi arc ion coating equipment. Multi arc ion plating uses gas
discharge or partial dissociation of evaporated materials to deposit evaporated or
reactive materials on the substrate at the same time of bombardment by gas ions or
particles of evaporated materials. The equipment is equipped with two multi arc
targets, which are arranged on both sides of the cavity. With the planetary sample
table, the coating efficiency can be effectively improved and the effect can be
improved

Features
1.The coating instrument also adopts the integrated design, the cavity and the
electric control part are left and right separated, realizing the separation of
water and electricity, and effectively ensuring the safety of users.
2.The combination of glow discharge, plasma technology and vacuum evaporation can
not only improve the film quality, but also expand the application of the film.
3.It has the advantages of fast evaporation rate, strong adhesion, good diffraction
and wide film material. It is very suitable for hard protective coating such as
TiN.
4.At the same time, the color of the film can be changed by controlling the
atmosphere, and the film is firmly combined with the substrate, so it can also be
used to make decorative films of various colors.

Minimum Order: 1 sets
