Multiple Protocol Conversion Industrial IoT Gateway for Smart City

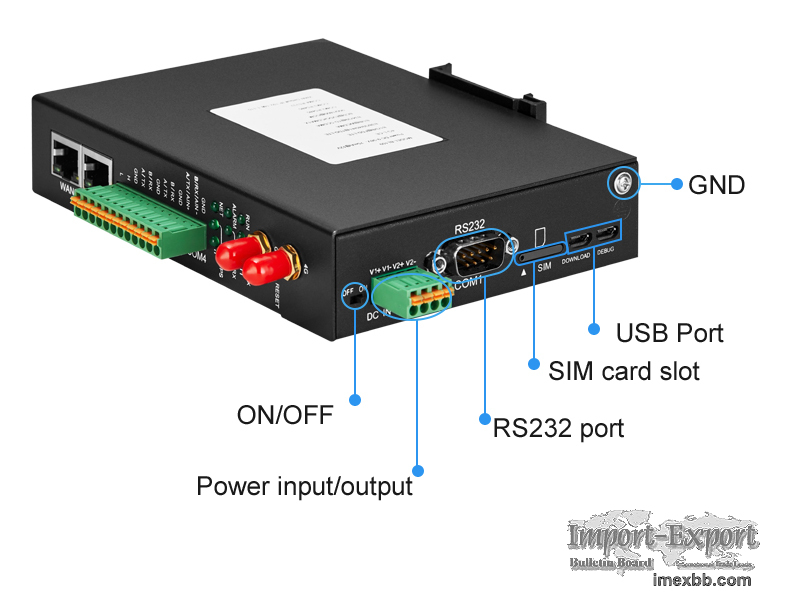

BL110 IIoT gateway comes with 4 serial ports and 2 network ports. Support
various PLC protocols, Modbus RTU, Modbus TCP, DL/T645, BACnet/IP, BACnet MS/TP
to Modbus TCP, OPC UA, MQTT, BACnet/IP protocol conversion, Huawei IoT, Alibaba
IoT, AWS, ThingsBoard, Sparkplug B, Ignition SCADA, BLIIoT Cloud. Support
custom secondary development.

1. PLC, BACnet/IP, BACnet MS/TP, Modbus RTU/TCP, DL/T645 to BACnet IP, Modbus
TCP, MQTT, OPC UA; Huawei IoT protocol conversion, Alibaba IoT, ThingsBoard,
Ignition SCADA, SparkplugB, DCS, MES, BLIIoT cloud, etc.;
2. Acquiring 4000 data points from 100 devices by Ethernet and Serial Ports;
3. Data mapping acquisition and control, transparent transmission and other
operating modes;
4. Connecting 7 cloud platforms and local host systems at the same time;
5. Support data SSL TLS, X.509 certificate, key encryption, Open VPN, APN
private network, offline caching and other security gateway features;
6. Integrated router function to provide network to other devices;
7. GPS positioning function for easy understanding of equipment distribution
and maintenance;
8. PLC program remote upload and download, easy to debug PLC;
9. Offline cache backup, network recovery replenishment transfer to ensure data
integrity;
10. Supports the establishment of trusted and secure connections through Open
VPN channels to ensure secure data transmission;
11. Active reporting, regular reporting, also has data threshold abnormal
alarm, linkage trigger control;
12. With local edge task management, flexible setting of gateway timed restart,
timed trigger switch type control on and off;
13. Multi-topic publishing, free to choose different data points to upload to
different IoT platforms;
14. Wireless remote firmware upgrade;
15. APN private network access;
16. Cellular signal value monitoring;
17. Support software and hardware watchdog, high reliability.
18. Support protocol custom development to meet non-standard equipment data
acquisition.

Minimum Order: 1 pieces
