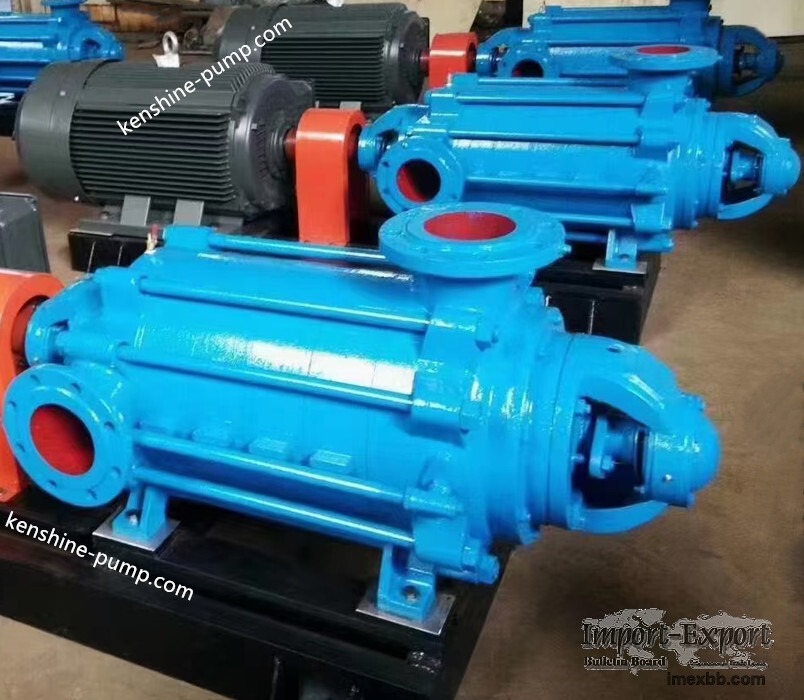

Multistage centrifugal horizontal water /oil /chemical pump

Multistage Centrifugal Horizontal Water /oil /Chemical Pump

Horizontal single-suction multistage segmented centrifugal pump. High efficiency
and energy saving, wide performance range, safe and stable operation, low noise,
long service life, convenient installation, and maintenance. It can transport clean
water without solid particles (abrasive), without suspended solids or other liquids
with physical and chemical properties similar to that of clean water. It can also
be used to transport hot water, oil, corrosive or abrasive fluid media by changing
the material of the pump (the material of the flow passage parts of the pump),
sealing form and adding cooling system.

Type D: It is used to transport clean water without solid particles and with
temperature lower than 80 ℃ or liquid with physical and chemical properties
similar to clean water. Suitable for mine, factory and urban water supply and
drainage engineering.

DF type is used to transport corrosive liquid without solid particles and a
temperature of - 20 to 105 degrees. The allowable pressure at the pump inlet is
less than 0.6MPa. Users can reasonably select the pump material, sealing form, pump
structure and determine the motor capacity according to the name, concentration,
specific gravity, operating temperature and pump inlet pressure of the pumped
medium.

DY pump is used to transport oil and petroleum products without solid particles,
with temperature of - 20 to 105 degrees and viscosity of less than 120 centipoise.

MD type pump is used to transport neutral mine water and other similar sewage with
particle content of no more than 1.5%, particle size of no more than 0.5mm and
temperature of - 20 to 80 degree Celsius.

DG is used for conveying clean water without solid particles and with temperature
of - 20 to 150 degree Celsius. suitable for medium and low-pressure boiler feed
water.

Material of overflow parts

D type: flow passage parts are for cast iron, shaft is 45 # steel

DG type: the flow passage parts are divided into cast iron and stainless steel
according to the use requirements, and the material is determined according to the
temperature and corrosivity of the conveyed medium

DY type: the flow passage parts are divided into cast iron, cast steel and
stainless steel according to the use requirements, and the material is determined
according to the temperature of the transported medium.

MD type: flow passage parts are made of wear-resistant cast iron or nodular cast
iron (ductile iron)

DG type: the flow passage parts are divided into cast iron, cast steel and
stainless steel according to the use requirements, and the material is determined
according to the temperature of the transmission medium

Minimum Order: 1 sets
