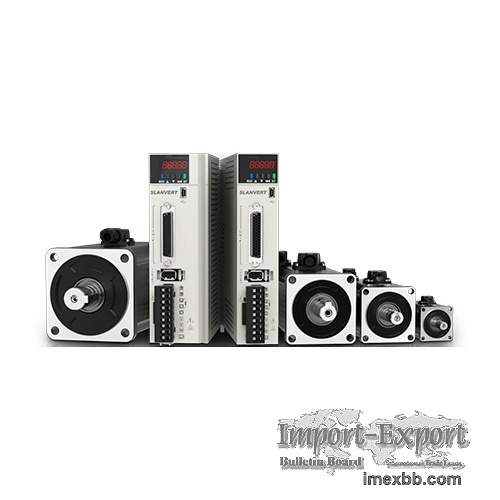

N3RP Pulse Series Servo

The N3RP Pulse Series Servo is engineered to deliver exceptional performance
and flexibility for demanding motion control applications. Supporting Pulse +
Direction and AB Quadrature 4x commands, it offers robust and reliable pulse-
based communication, ensuring smooth and precise operation. The system's semi-
closed-loop capability with frequency division output function enhances control
accuracy while reducing system complexity.
With high performance and advanced loop frequencies—carrier frequency: 8kHz,
current loop frequency: 16kHz, velocity loop frequency: 16kHz, and position
loop frequency: 4kHz—the N3RP series achieves superior motion control and
responsiveness in real-time applications. High-speed inputs, including 200kHz
for collector input and 4MHz for differential input, enable precise position
control with smaller pulse subdivisions, improving accuracy and resolution. The
system’s integrated high-speed probe function further elevates its utility,
offering seamless integration into high-precision processes.
