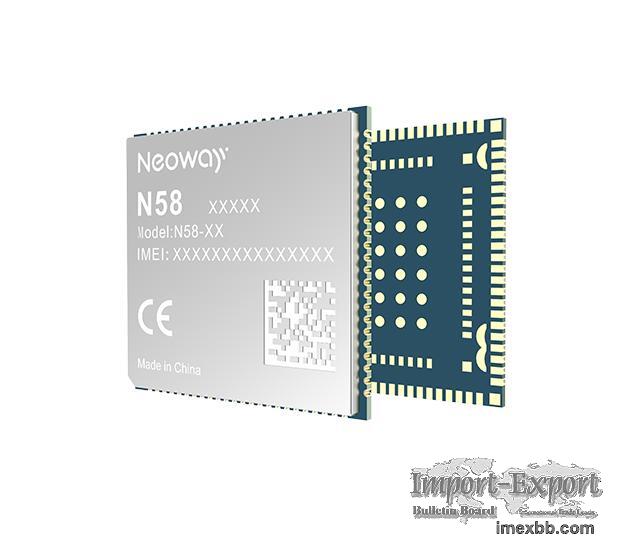

N58

Neoway N58 is an LTE Cat 1 module optimized specially for M2M and IoT
applications. Adopting the 3GPP Rel.13 LTE（Cat.1 bis） technology, LTE Cat.1
module N58 provides 10 Mbps downlink and 5 Mbps uplink data rates. Neoway N58
has excellent RF performance, ultra-low power consumption, and an ultra-wide
operating temperature range. Its USB serial drivers are applicable to Windows
7/8/8.1/10, Linux, and Android OS. With integration of network protocols,
industry-standard interfaces, and abundant functions, Neoway N58 is an optimal
option for energy metering, telematics, sharing/payment products, device
management, and other industry applications.

Product Features
BT (BLE 4.2)
Pin2Pin N720
Extensible memory
GNSS
-40℃ to 85℃

Specifications
Supply voltage 3.3 V to 4.3 V, Typ.: 3.8 V
Dimensions 30.0 mm x 28.0 mm x 2.8 mm
Package 192-pin LCC+LGA
Storage ROM+RAM: 64 Mb + 128 Mb
Interface PCM / I2S
ADC x 1
I2C x 1
SPI x 1
UART x 2
USB 2.0
PWRKEY_N
RESET_N
PSM_WAKEUP (Into sleep mode)
NET_LIGHT
USIM (1.8 V / 3.0 V) x 2 (Dual card single standby)
SDIO
1PPS (optional)
GNSS (optional) GPS/BDS/GLONASS
Frequency bands CA:
LTE Cat.1: B1/B3/B5/B8/B34/B39/B40/B41
GSMGPRS: 900/1800 MHz

EU/EMEA/SEA:
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41
GSMGPRS: 900/1800 MHz
Protocol TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ
ES , D VBAT: ±8 kV / ±15 kV
GND: ±8 kV / ±15 kV
ANT: ±8 kV / ±15 kV
Other: ±4 kV / ±8 kV
Region China(mainland)/EMEA/Australia
Certifications CCC, SRRC, CTA, CE, RoHS, REACH, POPs, NBTC, GCF*, Anatel*
