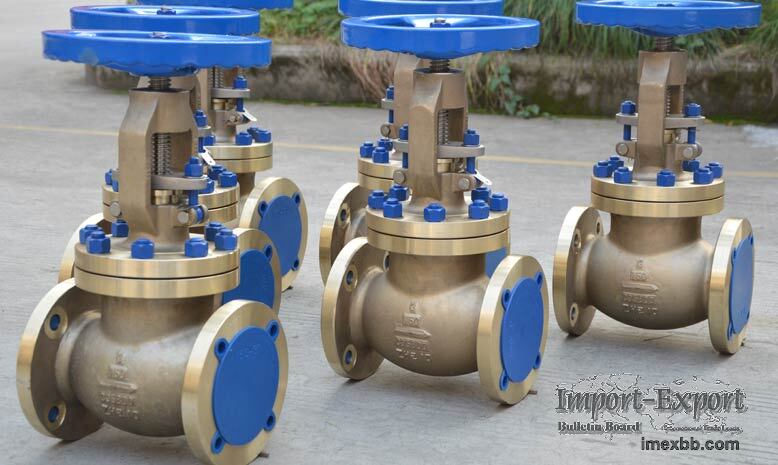

NAB C95800 Globe Valves

Aluminum-bronze valves are a suitable and far cheaper substitute to duplex,
super duplex, and monel for many seawater applications, especially in low-
pressure applications. Its major drawback is its low tolerance to heat.
Aluminium-bronze is also referred to as nickel-aluminum bronze and abbreviated
as NAB.

C95800 offers superior saltwater corrosion resistance. It also is resistant to
cavitation and erosion. Along with the advantage of pressure tightness, this
high-strength alloy is excellent for welding and is available in many forms at
a lower cost to you. So NAB C95800 Globe valves are typically used for
shipbuilding with seawater or fire water application.

The Fact That NAB C95800 Globe Valves
cost-effective (cheaper than the exotic alternatives);

long-lasting (comparable in performance on general corrosion, pitting, and
cavitation to super duplex alloys and significantly better than the standard
alloys), and

a good valve material (does not gall, has excellent anti-fouling properties,
and is a good thermal conductor), makes it an excellent choice for valves in
seawater service.


NAB C95800 Globe Valve Material Construction
Body, Bonnet, Disc Cast Ni-Alu bronze ASTM B148-C95800

Stem, Back Seat Ring Alu-Bronze ASTM B150-C63200 or Monel 400

Gaskets & Packing Graphite or PTFE

Bolting, Fasteners Stainless Steel A194-8M & A193-B8M

Hand Wheel Cast Iron A536+Anti-corrosive plastic

Weidouli Valves Co., Ltd., is a professional valve company, we provide
stainless steel globe valve, bronze globe valve, stainless globe valve, china
valve, etc. Contact us to know more.
