Nanocrystalline-Ferrite Composite Toroidal Core

Composite Structure‌:

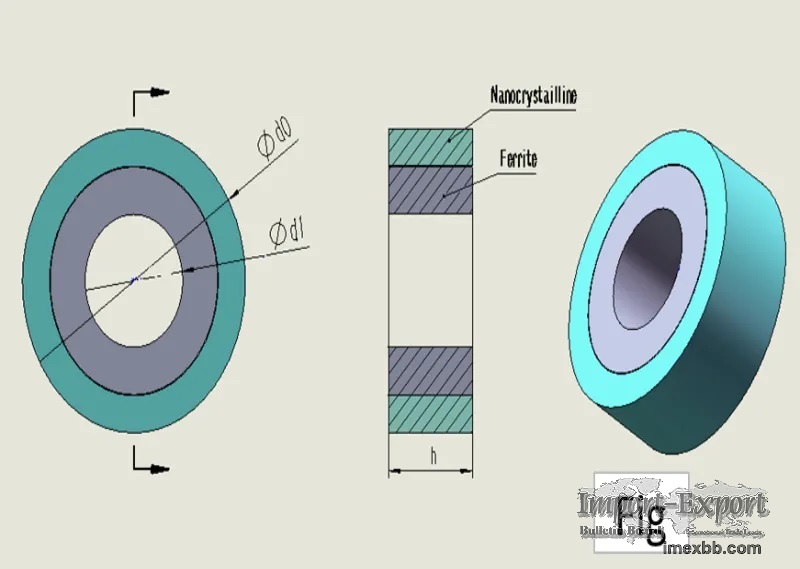

The core features a unique composite design where a toroidal nanocrystalline
core houses a toroidal ferrite core. This nested configuration combines the
strengths of both materials.
High-Frequency Performance‌:
By integrating nanocrystalline and ferrite materials, the composite core
exhibits excellent high-frequency characteristics. Nanocrystalline materials
offer low core loss at high frequencies, while ferrite contributes additional
inductance and saturation resistance.
Enhanced Inductance‌:
The dual-layer structure significantly boosts the inductance of the core,
making it ideal for applications requiring high impedance at high frequencies.
