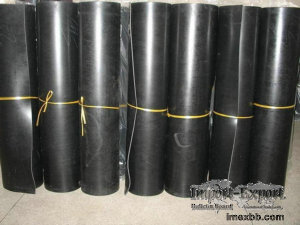

NBR Rubber Sheet, NBR Sheeting, NBR Rolls

NBR Rubber Sheet, NBR Sheeting, NBR Rolls


Description: the NBR rubber sheet, nitrile rubber sheet are made by drum
vulcanizer(ROTOCURE) or plate vulcanizer with high quality nitrile butadiene
rubber, nitrile rubber known as NBR, Buna-N and acrylonitrile butadiene rubber
is a synthetic rubber copolymer elastomer. NBR rubber are widely use in
automotive and aeronautical industry to make fuel and oil seals, self-sealing
fuel tanks lining. NBR ability to withstand range of temperatures from -30 to
+110°C make it an ideal material for aeronautical applications. NBR rubber
sheet is a nitrile base rubber sheet, providing excellent resistance to
petroleum oils as well as mineral and vegetable oils. NBR rubber material is
used in applications involving not only oil and fuel resistance but also those
applications requiring resistance to heat, abrasion, water and gas
permeability. It is resistant to weathering, sunlight and ozone. From oil rigs
to bowling alleys, nitrile rubber can be the right material for your
applications under excellent oil resistant, good resistance to heat and aging,
good impermeability to gases, good abrasion resistance. The NBR rubber sheet is
under middling hardness and high tensile strength, excellent performance of
fuel oil resistance, lubricating oil resistant, safety and nontoxicity without
smell. 0.5-10mm thickness made by drum vulcanizer(ROTOCURE) with shiny surface,
12-100mm thickness made by plate vulcanizer for higher thickness. Mainly
working in the lubricating oil, transformer oil, gasoline at the temperature of
-30°C - +100°C. Apply to punch all kinds of seals, gaskets, carburetor and
fuel pump diaphragms, chemical container lining, aircraft hoses or other shapes
and cover on the mechanical equipments with excellent oil resistant, good
resistance to heat and aging, good impermeability to gases, good abrasion
resistance, white NBR rubber sheet can be used for food grade applications.



Specifications:

material: virgin NBR Rubber or NBR/SBR

quality: industrial grade, food grade

color: black, white, red, grey etc.

surface: smooth/smooth, smooth/impression fabric, double impression fabric

Insertion: reinforce and insert 1-3PLY cotton, polyester, EP fabric or wire
mesh SS201, SS304, SS316

tensile strength: 4-16Mpa

hardness: 40, 50, 60, 70, 80+/-5shore A

elongation: 250%-380%

density: 1.20-1.40g/cm3

working temperature: -30°C - +100°C

thickness: 0.5-100.0mm

width: 0.1-3.6m

length: 0.1-20m

OEM & customized size are agreed

packing in rolls and pallets





Insulation sponge rubber sheet:

Insulation sponge rubber sheet is made by rubber-plastic sponge material which
has low thermal conductivity, full-closed structure, and excellent continuous
heat insulation. The material is completely isolated with vapor, so it has the
properties of water-proof, anti-condensation and long lifetime. After SGS
testing, its measured value is much lower than EU standard value on materials
without toxic substances, so it is safe and healthy. Moreover, with beautiful
appearance, it is easy for bending and construction, and no need of other
accessories.



Distinctive advantages:

• Closed structure can effectively prevent thermal conduction.

• Thermal conductivity 0.034W/m•k while 0°C.

• High heat emission coefficient of surface, up to 9W/m2k

• Excellent anti-steam permeated ability; moisture resistance 5000; "built-in"
steam-proof coating; the insulation board is insulating layer and moisture-
proof coating as well.

• Excellent fireproofing; oxygen index is above 32.

• Easy for installation.

• No CFC, HFC, HCFC or other materials containing fluorine, also no
formaldehyde, dust or fiber



The rubber plastic insulation board has excellent fireproof performance.
According to international GB/T17794-1999(Division Methods of construction
material burning performance), it meet to Chinese standard GB/T17794-1999 Grade
"B1" difficult-flammable material after testing, and working temperature is
from -50°C to +110°C.



Application areas:

• Refrigeration unit and equipment for air-conditioning system

• Frozen water pipe

• Condensing water pipe

• Air duct and hot water pipeline




Specifications:

material: NBR+plastic foam

quality: B1, B2 grade

color: black

cell: close cell

surface: smooth

density: 40-45kgs/m3

standard size:

6mm x 1m x 10m

8mm x 1m x 10m

10mm x 1m x 20m

13mm x 1m x 20m

15mm x 1m x 20m

18mm x 1m x 10m

20mm x 1m x 10m

25mm x 1m x 10m

30mm x 1m x 10m

OEM & customized size are agreed

packing in rolls, pallets and crates

***when you enquiry, pls confirm the tensile strength, hardness, color, size
and quantity***

Minimum Order: 1 pieces
