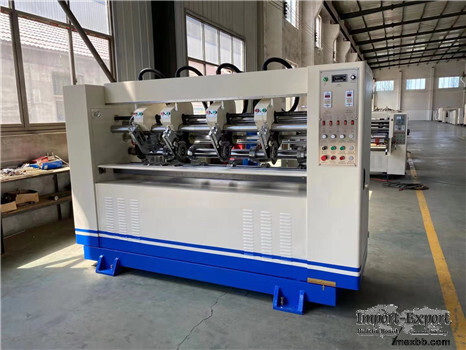

NC-Cut Off Machine Corrugated Cardboard Cutting Machine

7 Ply Corrugated Cardboard Production Line

Yangli Corrugated Cardboard Cutting Machine Maximum working width: 1400 mm;
Operation direction: left or right (according to customer's factory); Maximum
mechanical speed: 150 m/min; Length: 800 mm; Paper cutting accuracy: ±1mm for
constant speed, ±2 sets for uneven speed.

Conventional technical parameters:
1. maximum working width :1400 mm
2. operating direction: left or right (based on customer plant)
3. Maximum Mechanical Speed :150 m/min
4. Mechanical Configuration: Crosscutting of Computer Spiral Knife
5. Minimum Paper Cut Length :500 mm
6. Maximum Paper Cut Length :800 mm
7. Paper cutting accuracy: uniform speed ±1 mm, non-uniform speed ±2
equipment
8. size: Lmx4.2*Wmx1.2*Hmx1.4
9. Single weight: maximum Kg 3500
Roller diameter parameters:
1. cross-cut upper and lower cutter shaft center distance :￠216 mm
2. front and lower conveyor roller diameter ￠156 mm
3. The diameter of the back-down conveyor roll :￠156 mm
4. before the top press roll diameter: mm 70
5. Top press roller diameter :￠70 mm
Note: All roller shafts are ground, and the surface is plated with hard
chromium (except upper and lower tool shafts).

Power motor and electrical parameters:
1. Main drive motor power：22KW
2. Power of Paper Transmission Machine：3KW
3. Lubricating oil pump motor：0.25KW

Our company specializes in the production of corrugated cardboard production
lines, carton production lines, we provide customized services, come to consult
us!

Minimum Order: 1 sets
